Differential Case and Ring Gear - Two-Piece, Conventional: Assembly

WARNING: This page is about a different car, the 2011 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Position left differential case half (ring gear side) on the Differential Clutch Preload Gauge.

Fig 1: Positioning Left Differential Case Half Using Differential Clutch Preload Gauge
Courtesy of FORD MOTOR CO.
Lubricate the differential side gears and the differential side gear thrust washers with long-life grease.
Lubricate the differential pinion gears, pinion gear thrust washers and the differential pinion shaft with long-life grease.
Install the left differential side gear and thrust washer.

Fig 2: Locating Left Differential Side Gear
Courtesy of FORD MOTOR CO.
Install the differential pinion shaft and the differential pinion gears.

Fig 3: Installing Differential Pinion Shaft And Pinion Gears
Courtesy of FORD MOTOR CO.
Position the right differential case half with the right side gear and thrust washer.

Fig 4: Positioning Right Differential Case Half
Courtesy of FORD MOTOR CO.
With the index marks aligned, apply threadlock to the 9 differential case retaining bolts.

Fig 5: Locating Differential Case Bolt
Courtesy of FORD MOTOR CO.
Install the 9 differential case retaining bolts.
NOTE: Use the Drive Pinion Flange Holding Fixture as shown in illustration to keep the differential case from turning.
- Tighten to 63 Nm (46 lb-ft) and then tighten an additional 90 degrees.
Fig 6: Tightening Differential Case Retaining Bolt
Courtesy of FORD MOTOR CO.
Install the 12 new ring gear bolts.
- Tighten to 63 Nm (46 lb-ft) and then tighten an additional 60 degrees.

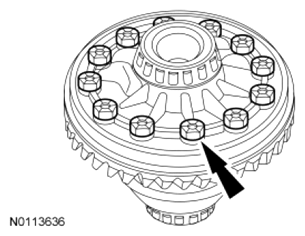

Fig 7: Locating Ring Gear Bolt
Courtesy of FORD MOTOR CO.
Install the differential carrier. For additional information, refer to DIFFERENTIAL CARRIER .
