Removal And Installation: Hublock: Material

WARNING: This page is about a different car, the 2011 Ford Pickup, 2011 Ford F550 Super Duty, 2011 Ford F450 Super Duty, and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

MATERIAL SPECIFICATIONS

Item	Specification
High Temperature 4x4 Front Axle and Wheel Bearing Grease XG-11	WSS-M1C267-A1

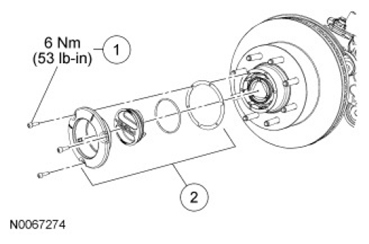

Fig 1: Hublock With Torque Specifications

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	W709526	Hublock screw (3 required)
2	3B396	Hublock assembly
