Gasoline Engines
WARNING: This page is about a different car, the 2011 Ford Pickup, 2011 Ford F550 Super Duty, 2011 Ford F450 Super Duty, and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

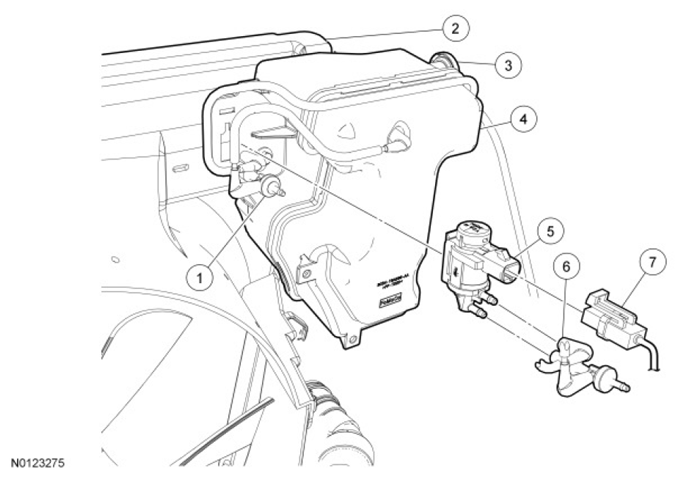

Courtesy of FORD MOTOR CO. PARTS DESCRIPTION CHART
| Item |
Part Number |
Description |
| 1 |
19A563 |
Check valve |
| 2 |
8L604 |
Radiator fan shroud |
| 3 |
9F490 |
Regulator |
| 4 |
19A566 |
Hublock vacuum reservoir |
| 5 |
9H465 |
Constant Vacuum Hublock (CVH) solenoid |
| 6 |
7A784 |
Vacuum hoses |
| 7 |
12A581 |
CVH
solenoid electrical connector |
