Diesel Engines

WARNING: This page is about a different car, the 2011 Ford Pickup, 2011 Ford F550 Super Duty, 2011 Ford F450 Super Duty, and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

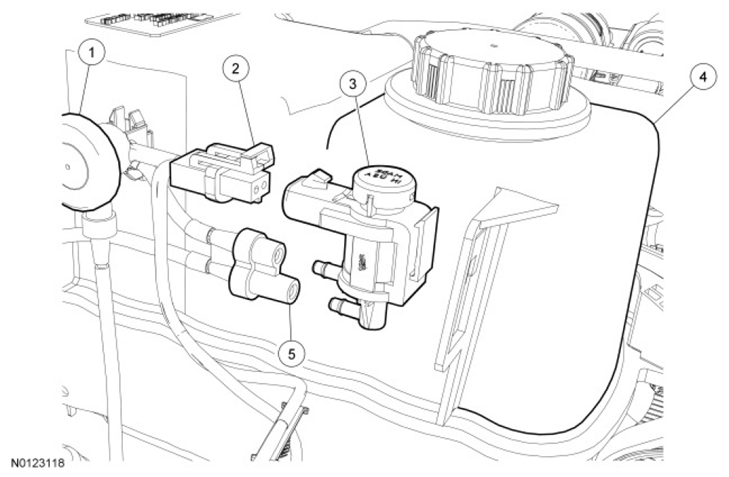

Fig 1: Identifying Hublock Vacuum Solenoid Components Locations - Diesel Engines

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	9F490	Regulator
2	12A581	Constant Vacuum Hublock (CVH) solenoid electrical connector
3	9H465	CVH solenoid
4	10723	Battery tray/Degas bottle
5	7A784	Vacuum hoses
