Steering Column Multifunction Switch: Notes
WARNING: This page is about a different car, the 2011 Ford Pickup, 2011 Ford F550 Super Duty, 2011 Ford F450 Super Duty, and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

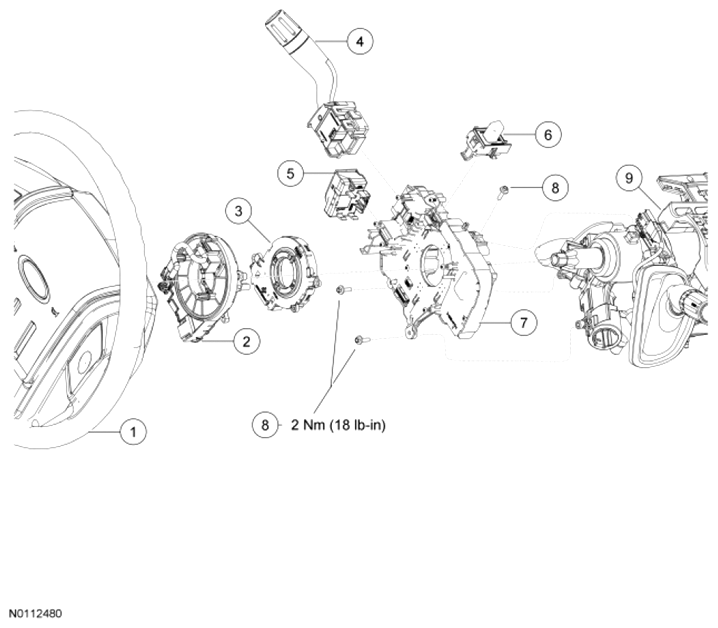

STEERING COLUMN MULTIFUNCTION SWITCH PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 3600 | Steering wheel |
| 2 | 14A664 | Clockspring (also part of 3F944) |
| 3 | 3F818 | Steering wheel rotation sensor (also part of 3F944) |
| 4 | 13K359 | Multifunction switch (also part of 3F944) |
| 5 | 14B494 | Adjustable pedal switch (also part of 3F944) |
| 6 | 13A350 | Hazard switch |
| 7 | 3F944 | Steering column control module assembly |
| 8 | W715057 | Steering column control module screw (3 required) |
| 9 | 3C529 | Steering column |
