Stabilizer Bar: Notes
WARNING: This page is about a different car, the 2011 Ford Pickup, 2011 Ford F550 Super Duty, 2011 Ford F450 Super Duty, and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

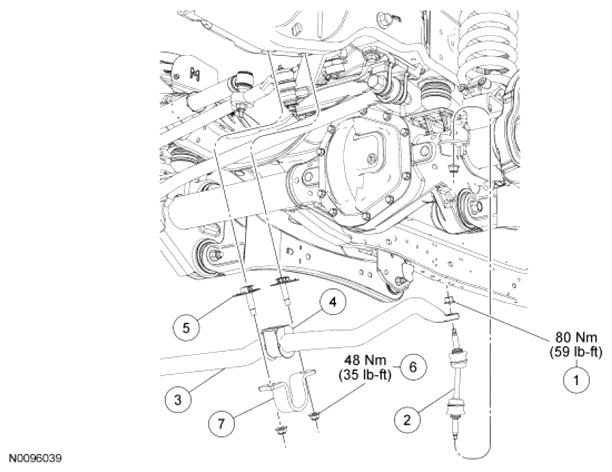

STABILIZER BAR PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | N807144 | Stabilizer bar link nut (4 required) |
| 2 | 3K483 | Stabilizer bar link (2 required) |
| 3 | 5482 | Stabilizer bar |
| 4 | 5484 | Stabilizer bar bushing (2 required) |
| 5 | W712045 | Stabilizer bar bracket bolt and retainer (4 required) |
| 6 | W520113 | Stabilizer bar bracket nut (4 required) |
| 7 | 5486 | Stabilizer bar bracket (2 required) |
