Stabilizer Bar Link: Notes

WARNING: This page is about a different car, the 2011 Ford Pickup, 2011 Ford F550 Super Duty, 2011 Ford F450 Super Duty, and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH shown in the illustration, RH similar.

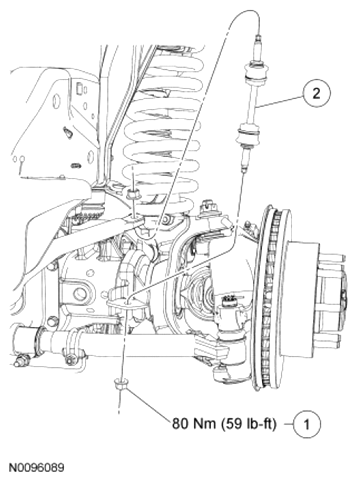

Fig 1: Exploded View Of Stabilizer Bar Link With Torque Specifications

Courtesy of FORD MOTOR CO.

STABILIZER BAR LINK PARTS DESCRIPTION CHART

Item	Part Number	Description
1	N807144	Stabilizer bar link nut (2 required)
2	3K483	Stabilizer bar link
