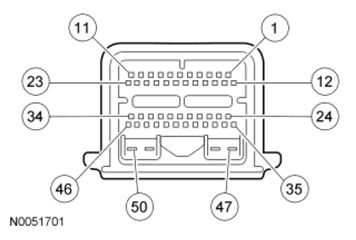

CONNECTOR-PIN REFERENCE
| Transmission Terminal | Description | PCM Terminal |
|---|---|---|
| 1 | SSPCE | 34 |
| 2 | Not Used | - |
| 3 | SSPCB | 44 |
| 4 | SSPCD | 10 |
| 5 | SSPCC | 45 |
| 6 | Not Used | - |
| 7 | Ignition Voltage | 50 |
| 8 | TCC | 46 |
| 9 | Not Used | - |
| 10 | PCA | 42 |
| 11 | Not Used | - |
| 12 | SSPCA | 43 |
| 13 | Not Used | - |
| 14 | Not Used | - |
| 15 | TR Power | 12 |
| 16 | Not Used | - |
| 17 | TR Signal Return | 41 |
| 18 | TFT Signal | 20 |
| 19 | Not Used | - |
| 20 | Ignition Voltage | 50 |
| 21 | TR Ignition Voltage | 3 |
| 22 | Ground | 38 |
| 23 | Not Used | - |
| 24 | Ignition Voltage | 50 |
