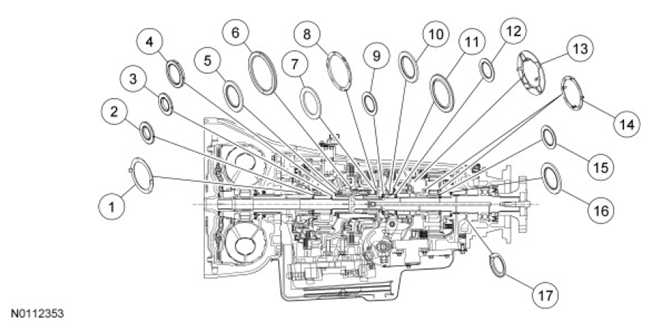

Bushings, Bearing & Thrust Washer Locator
WARNING: This page is about a different car, the 2011 Ford F550 Super Duty and 2011 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 7D014 | Front pump support washer No. 1T |
| 2 | 7C096 | Sun gear thrust bearing and race assembly No. 2B and 3B |
| 3 | 7E486 | Part of the overdrive carrier (7E031) |
| 4 | 7F240 | Direct clutch bearing and race assembly No. 4B |
| 5 | 7G178 | Sun gear thrust bearing and race assembly No. 5B |
| 6 | 7L326 | Center support thrust washer |
| 7 | 7F374 | Intermediate clutch thrust bearing No. 8B |
| 8 | 7C096 | Intermediate brake thrust washer |
| 9 | 7D234 | Sun gear thrust bearing and race assembly No. 10B, 12B, 15B |
| 10 | 7D090 | Forward clutch hub thrust washer No. 9T |
| 11 | 7H334 | Forward carrier bearing and race assembly No. 11B |
| 12 | 7D234 | Sun gear thrust bearing and race assembly No. 10B, 12B, 15B |
| 13 | 7L339 | Forward carrier lube dam |
| 14 | 7A166 | Planetary carrier thrust washer |
| 15 | 7D234 | Sun gear thrust bearing and race assembly No. 10B, 12B, 15B |
| 16 | 7G178 | Bearing and race assembly No. 16B |
| 17 | 7B368 | Park gear thrust washer |
