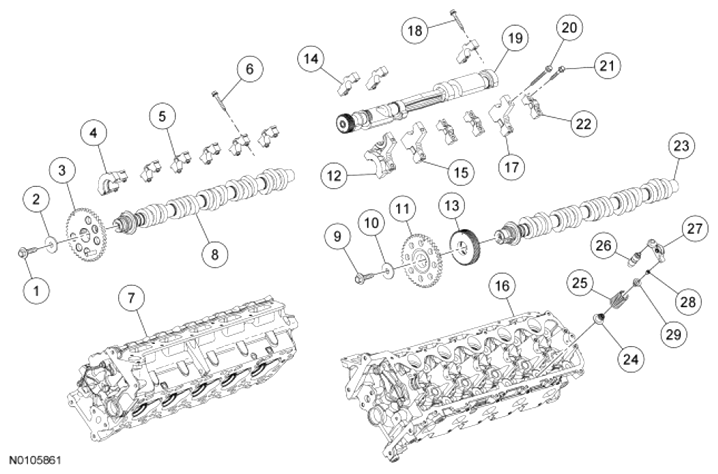

Valve Train Components - Exploded View
WARNING: This page is about a different car, the 2011 Ford F550 Super Duty and 2011 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | W701926 | RH camshaft sprocket bolt |
| 2 | N806164 | RH camshaft sprocket washer |
| 3 | 6254 | RH camshaft sprocket |
| 4 | 6B284 | RH front camshaft bearing cap |
| 5 | 6B280 | RH camshaft bearing cap (5 required) |
| 6 | N807352 | RH camshaft bearing cap bolt (12 required) |
| 7 | 6049 | RH cylinder head |
| 8 | 6251 | RH camshaft |
| 9 | W710926 | LH camshaft sprocket bolt |
| 10 | N806164 | LH camshaft sprocket washer |
| 11 | 6256 | LH camshaft sprocket |
| 12 | 6C272 | LH camshaft front bearing cap |
| 13 | 6A303 | Balance shaft drive gear |
| 14 | 6C267 | Balance shaft bearing cap (3 required) |
| 15 | 6C266 | LH camshaft bearing cap |
| 16 | 6050 | LH cylinder head |
| 17 | 6C266 | LH camshaft bearing cap |
| 18 | W708027 | Balance shaft bearing cap bolt (6 required) |
| 19 | 6A305 | Balance shaft |
| 20 | W708028 | LH camshaft bearing cap bolt (3 required) |
| 21 | N807352 | LH camshaft bearing cap bolt (9 required) |
| 22 | 6B280 | LH camshaft bearing cap (3 required) |
| 23 | 6C255 | LH camshaft |
| 24 | 6A517 | Valve seal (30 required) |
| 25 | 6513 | Valve spring (30 required) |
| 26 | 6C501 | Hydraulic lash adjuster (30 required) |
| 27 | 6529 | Camshaft roller follower (30 required) |
| 28 | 6518 | Valve spring retainer key (60 required) |
| 29 | 6514 | Valve spring retainer (30 required) |
- For additional information, refer to the appropriate procedures in this service information.
