Valve Springs: Installation

All valve springs

NOTE: If the components are to be reinstalled, they must be installed in their original locations or engine damage may occur.

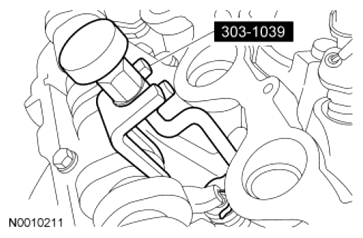

Fig 1: Remove/Install Valve Spring Retainer Key Using Valve Spring Compressor
Courtesy of FORD MOTOR CO.
1. Using the Valve Spring Compressor, install the valve spring, the valve spring retainer and the valve spring retainer keys.
2. Relieve the air pressure from the cylinder.
NOTE: If the components are to be reinstalled, they must be installed in their original locations or engine damage may occur.
NOTE: Do not allow the valve keepers to fall off the valve or the valve may drop into the cylinder. If a valve drops into the cylinder, the cylinder head must be removed. For additional information, refer to CYLINDER HEAD  in this service information.
NOTE: It may be necessary to push the valve down while compressing the spring.
NOTE: Lubricate the camshaft roller followers with clean engine oil prior to installation.
Fig 2: Remove/Install Camshaft Roller Followers From RH Cylinder Head Using Valve Spring Compressor
Courtesy of FORD MOTOR CO.
3. Using the Valve Spring Compressor, compress the valve spring and install the camshaft roller follower.

   Cylinder No. 7 front intake valve spring

4. Position the camshaft bearing cap and install the 2 bolts.
   • Tighten to 10 Nm (89 lb-in).

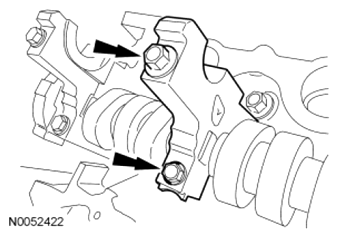

   Fig 3: Locating Middle Balance Shaft Bearing Support And Camshaft Bearing Cap Assembly Bolts

   Courtesy of FORD MOTOR CO.
5. Lubricate the balance shaft journals with clean engine oil.
NOTE: Camshaft sprocket removed from art for clarity.
NOTE: It may be necessary to rotate the crankshaft to align the balance shaft timing marks.

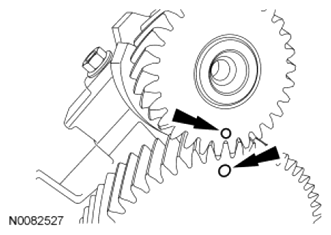

Fig 4: Locating Balance Shaft And Camshaft Timing Marks
Courtesy of FORD MOTOR CO.
6. Position the balance shaft on the journals and align the timing mark on the balance shaft with the camshaft timing mark as shown.
NOTE: The balance shaft bearing caps must be installed into their original locations or engine damage may occur.

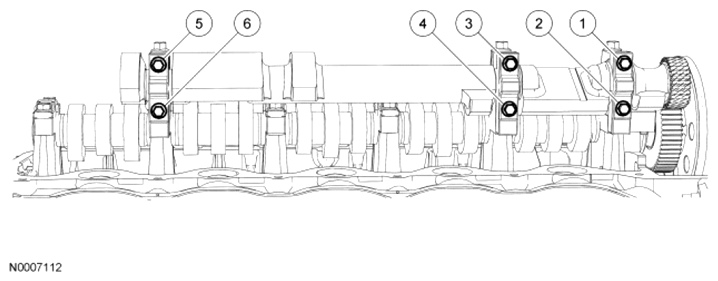

Fig 5: Identifying Balance Shaft Bearing Cap Bolt Loosening/Tightening Sequence
Courtesy of FORD MOTOR CO.
7. Position the 3 balance shaft bearing caps and install the 6 bolts and tighten in the sequence shown.
   • Tighten to 10 Nm (89 lb-in).

   Cylinder No. 10 front intake valve spring

8. Position the camshaft bearing cap and install the 2 bolts.
   • Tighten to 10 Nm (89 lb-in).

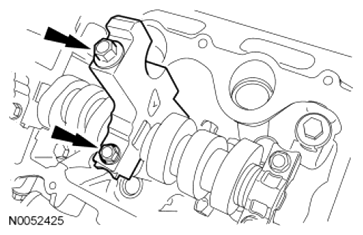

   Fig 6: Locating Rear Balance Shaft Bearing Support And Camshaft Bearing Cap Assembly Bolts

   Courtesy of FORD MOTOR CO.
9. Lubricate the balance shaft journals with clean engine oil.
NOTE: Camshaft sprocket removed from art for clarity.
NOTE: It may be necessary to rotate the crankshaft to align the balance shaft timing marks.
Fig 7: Locating Balance Shaft And Camshaft Timing Marks
Courtesy of FORD MOTOR CO.
10. Position the balance shaft on the journals and align the timing mark on the balance shaft with the camshaft timing mark as shown.
NOTE: The balance shaft bearing caps must be installed into their original locations or engine damage may occur.
Fig 8: Identifying Balance Shaft Bearing Cap Bolt Loosening/Tightening Sequence
Courtesy of FORD MOTOR CO.
11. Position the 3 balance shaft bearing caps and install the 6 bolts and tighten in the sequence shown.
    • Tighten to 10 Nm (89 lb-in).

    All valve springs

12. Install the spark plug. For additional information, refer to ENGINE IGNITION - 6.8L (3V) article.
13. Depending on the valve being serviced, install the LH or RH valve cover. For additional information, refer to VALVE COVER - LH  or Valve Cover - RH  in this service information.
