Valve Cover - LH: Removal
WARNING: This page is about a different car, the 2011 Ford F550 Super Duty and 2011 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the Air Cleaner (ACL) outlet pipe. For additional information, refer to INTAKE AIR DISTRIBUTION SYSTEM & INTAKE AIR FILTERING SYSTEM article.
- Remove the LH ignition coils. For additional information, refer to ENGINE IGNITION - 6.8L (3V) article.
- Remove the oil level indicator and tube. For additional information, refer to OIL LEVEL INDICATOR AND TUBE in this service information.
- Disconnect the quick connect couplings and remove the PCV tube. For additional information, refer to FUEL SYSTEM - GENERAL INFORMATION - GASOLINE AND DIESEL article.
- Disconnect the engine wiring harness retainers from the valve cover studs and position the wiring harness aside.

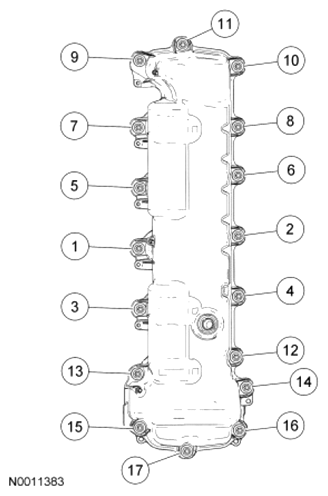

- Loosen the 17 fasteners in the sequence shown and remove the LH valve cover and gasket.
- Clean and inspect the sealing surfaces with silicone gasket remover and metal surface prep. Follow the directions on the packaging.
- Discard the valve cover gasket. Clean the valve cover gasket groove with soap and water or a suitable solvent.
NOTE:
Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.
NOTE:
The bolts are part of the valve cover and should not be removed.
