Oil Pump: Removal

WARNING: This page is about a different car, the 2011 Ford F550 Super Duty and 2011 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pan. For additional information, refer to OIL PAN  in this service information.
  2. Remove the timing drive components. For additional information, refer to TIMING DRIVE COMPONENTS  in this service information.
  3. Remove the 3 bolts and the oil pump.

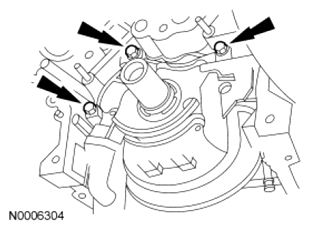

    Fig 1: Locating Oil Pump Bolts
    G07480267Courtesy of FORD MOTOR CO.
