In-Vehicle Repair: Flexplate: Installation

WARNING: This page is about a different car, the 2011 Ford F550 Super Duty and 2011 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the flexplate and the 8 bolts in the sequence shown.
    • Tighten to 80 Nm (59 lb-ft).

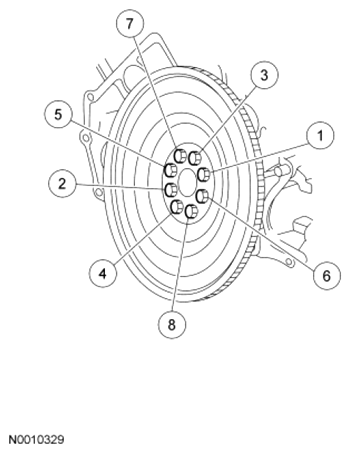

    Fig 1: Identifying Flexplate Bolts Tightening Sequence
    G07480272Courtesy of FORD MOTOR CO.
  2. Install the transmission. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION - TORQSHIFT article.
  3. Using the scan tool, perform the Misfire Monitor Neutral Profile Correction procedure following the on-screen instructions.
