Exhaust Manifold - RH: Installation

WARNING: This page is about a different car, the 2011 Ford F550 Super Duty and 2011 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Position the exhaust manifold and 2 new exhaust manifold gaskets and install 10 new exhaust manifold-to-cylinder head studs.
- Tighten to 12 Nm (106 lb-in).
Install 10 new exhaust manifold nuts in the sequence shown.
- Tighten to 25 Nm (18 lb-ft).

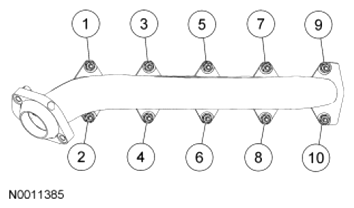

Fig 1: Exhaust Manifold Nuts Tightening Sequence
Courtesy of FORD MOTOR CO.
Position the exhaust manifold heat shield and install the 2 bolts.
- Tighten to 14 Nm (124 lb-in).
Install the exhaust Y-pipe. For additional information, refer to EXHAUST SYSTEM article.
Install the RH inner fenderwell. For additional information, refer to BODY PANEL SYSTEM - FRONT END BODY PANELS article.
Install the starter. For additional information, refer to STARTING SYSTEM - GASOLINE ENGINES article.
Install the transmission filler tube. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION - TORQSHIFT article.
