Engine Support Insulators: Removal

WARNING: This page is about a different car, the 2011 Ford F550 Super Duty and 2011 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Both engine support insulators

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING article.
  2. Disconnect the battery ground cable. For additional information, refer to BATTERY, BATTERY MOUNTING SYSTEM & BATTERY CABLES article.
  3. Remove the Air Cleaner (ACL) outlet pipe. For additional information, refer to INTAKE AIR DISTRIBUTION SYSTEM & INTAKE AIR FILTERING SYSTEM article.
  4. Remove the Throttle Body (TB) spacer. For additional information, refer to FUEL CHARGING AND CONTROLS - 6.8L (3V) article.
  5. Remove the generator. For additional information, refer to CHARGING SYSTEM article.
  6. Remove the engine cooling fan. For additional information, refer to ENGINE COOLING - GASOLINE ENGINES article.
  7. Install the Engine Support Bar, Support Hook and Engine Support Bracket.

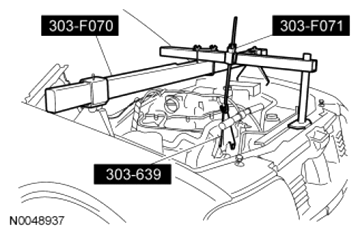

    Fig 1: Identifying Engine Support Bar, Support Hook And Engine Support Bracket
    G07480305Courtesy of FORD MOTOR CO.
  8. Remove the A/C compressor. For additional information, refer to HVAC - CLIMATE CONTROL SERVICING article.
    9. NOTE: RH shown, LH similar.

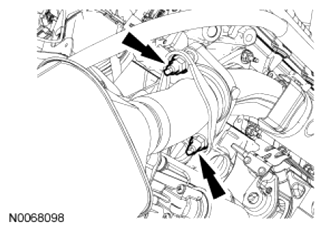

    Fig 2: Locating Exhaust Y-Pipe Flange Nuts
    G07480306Courtesy of FORD MOTOR CO.
  9. Remove the 4 exhaust Y-pipe flange nuts.
    10. NOTE: Failure to replace the transmission support insulator nuts may result in transmission support insulator damage.
    NOTE: If the transmission support insulator stud loosens when the transmission support insulator nut is removed, the stud must be discarded and a new stud installed.

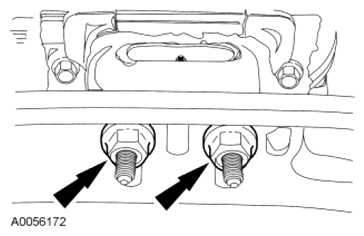

    Fig 3: Locating Transmission Support Insulator-To-Crossmember Nuts
    G07480307Courtesy of FORD MOTOR CO.
  10. Remove and discard the 2 transmission support insulator-to-crossmember nuts.

    RH engine support insulator

  11. Remove the starter. For additional information, refer to STARTING SYSTEM - GASOLINE ENGINES article.

    LH engine support insulator

  12. Remove and discard the oil filter.

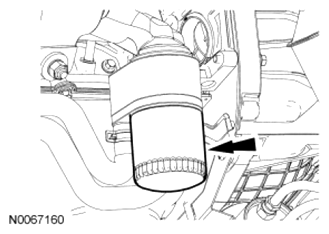

    Fig 4: Locating Oil Filter
    G07480308Courtesy of FORD MOTOR CO.
    13. NOTE: If metal foreign material is present in the oil cooler, mechanical concerns exist. To diagnose mechanical concerns, ENGINE MECHANICAL SYSTEM - GENERAL INFORMATION article. If the mechanical concern is not diagnosed and repaired, engine failure may occur.

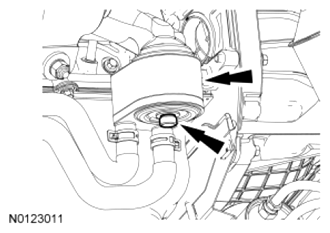

    Fig 5: Locating Oil Cooler Insert
    G07480309Courtesy of FORD MOTOR CO.
  13. Remove the threaded insert and position the oil cooler aside.
    • Inspect the engine oil cooler.
    14. NOTE: Failure to replace the engine support insulator nuts may result in engine support insulator damage.
    NOTE: Only use hand tools when loosening the engine support insulator nuts or damage to the engine support insulator may occur.
  14. Remove and discard the 3 LH engine support insulator nuts.

    Both engine support insulators

    15. NOTE: Failure to replace the engine support insulator nuts may result in engine support insulator damage.
    NOTE: Only use hand tools when loosening the engine support insulator nuts or damage to the engine support insulator may occur.
    NOTE: The engine support insulator studs may come out of the insulator while removing the nuts. Install new engine support insulator studs if the studs come out of the insulator.
  15. Remove and discard the 4 RH engine support insulator nuts.
    16. NOTE: The engine support insulator through bolt must be discarded and a new bolt installed, or damage to the vehicle or engine support insulator may occur.
    NOTE: Only use hand tools when removing the engine support insulator through bolt or damage to the engine support insulator may occur.
  16. Remove and discard the RH and LH engine support insulator through bolts.
  17. Using the Engine Support Bar, Support Hook and Engine Support Bracket and raise the engine.
    Fig 6: Identifying Engine Support Bar, Support Hook And Engine Support Bracket
    G07480310Courtesy of FORD MOTOR CO.

    RH engine support insulator

  18. Remove the RH engine support insulator.
    19. NOTE: The engine support insulator bracket bolts must be discarded and new bolts installed, or damage to the vehicle may occur. They are a tighten-to-yield design and cannot be reused.
  19. If servicing the RH engine support insulator bracket, remove the 3 bolts and the RH engine support insulator bracket.
    • Discard the 3 engine support insulator bracket bolts.

    LH engine support insulator

  20. Remove the LH engine support insulator.
    21. NOTE: The engine support insulator bracket bolts must be discarded and new bolts installed or damage to the vehicle may occur. They are a tighten-to-yield design and cannot be reused.
  21. If servicing the LH engine support insulator bracket, remove the 3 bolts and the LH engine support insulator bracket.
    • Discard the 3 engine support insulator bracket bolts.
