Engine Oil Pressure (EOP) Switch: Notes

WARNING: This page is about a different car, the 2011 Ford F550 Super Duty and 2011 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

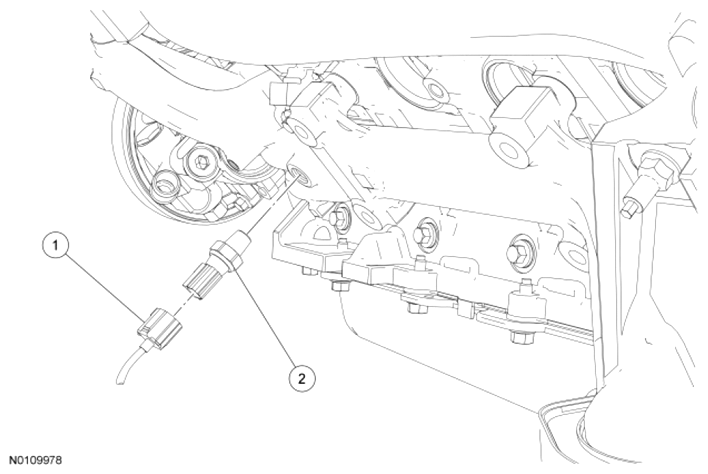

Fig 1: Identifying Engine Oil Pressure Switch Components
G07480233Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 - Engine Oil Pressure (EOP) switch electrical connector (part of 12A581)
2 9278 EOP switch
