Crankshaft Rear Seal: Removal

WARNING: This page is about a different car, the 2011 Ford F550 Super Duty and 2011 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the flexplate. For additional information, refer to FLEXPLATE  in this service information.
  2. Remove the engine rear cover plate.
  3. Using the Slide Hammer and the Crankshaft Rear Oil Slinger Remover, remove and discard the crankshaft oil slinger.
    Fig 1: Removing Crankshaft Rear Oil Seal Slinger Using Special Tools
    G07480279Courtesy of FORD MOTOR CO.
  4. Using the Slide Hammer and the Crankshaft Rear Oil Seal Remover, remove and discard the crankshaft rear seal.

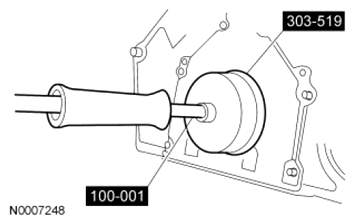

    Fig 2: Removing Crankshaft Rear Seal Using Special Tools
    G07480280Courtesy of FORD MOTOR CO.
