Camshaft - RH: Installation

WARNING: This page is about a different car, the 2011 Ford F550 Super Duty and 2011 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the camshaft and camshaft journals with clean engine oil.
    2. NOTE: Do not remove the Timing Chain Locking Tool at any time during assembly. If the Timing Chain Locking Tool is removed or out of placement, the engine front cover must be removed and the engine must be retimed. For additional information, refer to TIMING DRIVE COMPONENTS  in this service information.
    NOTE: Do not allow the roller followers to move out of position when installing the camshaft.
    Fig 1: Locating RH Camshaft Sprocket Bolt
    G07480145Courtesy of FORD MOTOR CO.
  2. Install the camshaft into the camshaft sprocket assembly and onto the head. Install a new camshaft sprocket bolt finger-tight.
    3. NOTE: Do not remove the Timing Chain Locking Tool at any time during assembly. If the Timing Chain Locking Tool is removed or out of placement, the engine front cover must be removed and the engine must be retimed. For additional information, refer to TIMING DRIVE COMPONENTS  in this service information.
    NOTE: The timing chain must be installed in its original position onto the camshaft sprocket using the scribed marks, or damage to valves and pistons will result.

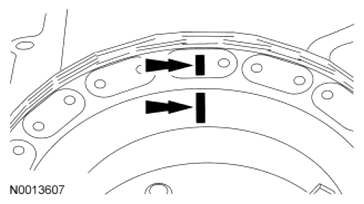

    Fig 2: Locating Mark On Timing Chain And Camshaft Sprocket Assembly
    G07480146Courtesy of FORD MOTOR CO.
  3. Verify the camshaft sprocket and timing chain scribe marks are still in alignment.
    4. NOTE: Do not allow the roller followers to move out of position when installing the camshaft.
  4. Install the camshaft bearing caps in their original locations.
    • Lubricate the camshaft bearing caps with clean engine oil.
    • Position the front camshaft bearing cap.
    • Position the remaining camshaft bearing caps.
    • Install the 12 bolts loosely.
  5. Tighten the 12 RH camshaft bearing cap bolts in 2 stages:
    • Stage 1: Tighten to 8 Nm (71 lb-in) in the sequence shown.
    • Stage 2: Tighten an additional 45 degrees.

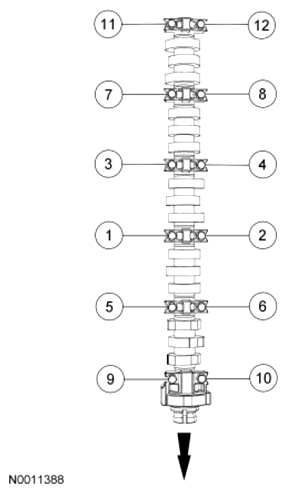

    Fig 3: Identifying Tightening Sequence Of RH Camshaft Bearing Cap Bolts
    G07480147Courtesy of FORD MOTOR CO.
  6. Remove the Timing Chain Locking Tool.

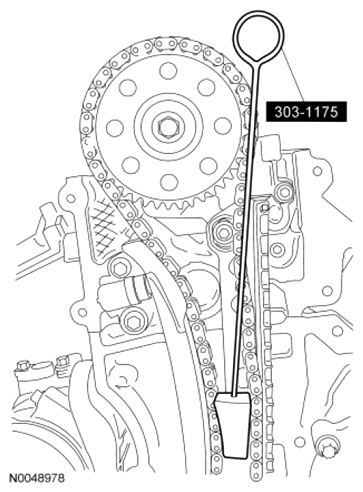

    Fig 4: Identifying Timing Chain Locking Tool On RH Timing Chain
    G07480148Courtesy of FORD MOTOR CO.
  7. Rotate the crankshaft a half turn counterclockwise and position the crankshaft damper spoke at the 12 o'clock position and the timing mark indentation at the 1 o'clock position.

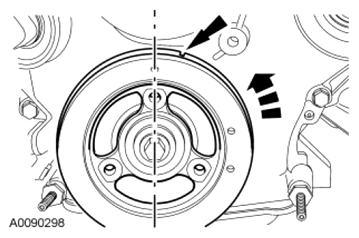

    Fig 5: Rotating Crankshaft Counterclockwise
    G07480149Courtesy of FORD MOTOR CO.
  8. The No. 1 cylinder camshaft exhaust lobe must be coming up on the exhaust stroke. Verify by noting the position of the 2 intake camshaft lobes and the exhaust lobe on the No. 1 cylinder.

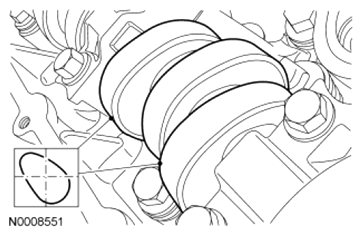

    Fig 6: Identifying No. 1 Cylinder Camshaft Exhaust Lobe Is On The Exhaust Stroke
    G07480150Courtesy of FORD MOTOR CO.
    9. NOTE: Lubricate the camshaft roller followers with clean engine oil prior to installation.
    NOTE: Do not allow the valve keepers to fall off the valve or the valve may drop into the cylinder. If a valve drops into the cylinder, the cylinder head must be removed. For additional information, refer to CYLINDER HEAD  in this service information.
    NOTE: It may be necessary to push the valve down while compressing the spring.

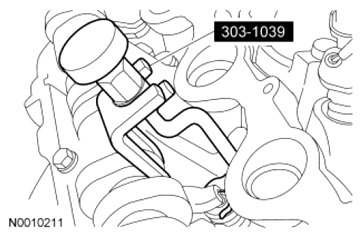

    Fig 7: Remove/Install Camshaft Roller Followers From RH Cylinder Head Using Valve Spring Compressor
    G07480151Courtesy of FORD MOTOR CO.
  9. Using the Valve Spring Compressor, install the 3 originally removed camshaft roller followers.
  10. Install the CMP  sensor and the bolt.

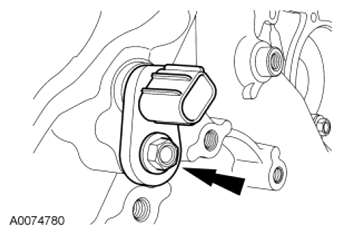

    Fig 8: Locating CMP Sensor Bolt
    G07480152Courtesy of FORD MOTOR CO.
  11. Connect the CMP electrical connector.

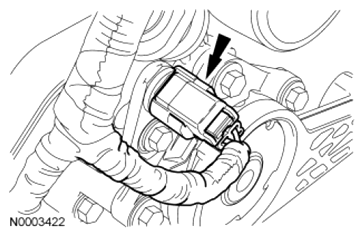

    Fig 9: Locating CMP Electrical Connector
    G07480153Courtesy of FORD MOTOR CO.
    12. NOTE: Only use hand tools to install the camshaft sprocket assembly or damage may occur to the camshaft or camshaft sprocket.

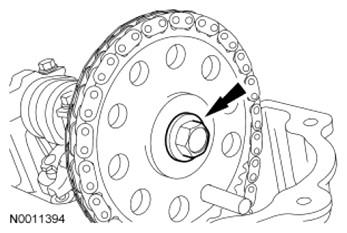

    Fig 10: Locating RH Camshaft Sprocket Bolt
    G07480154Courtesy of FORD MOTOR CO.
  12. Tighten the camshaft sprocket bolt in 2 stages:
    • Stage 1: Tighten to 40 Nm (30 lb-ft).
    • Stage 2: Tighten an additional 90 degrees.
  13. Install the RH valve cover. For additional information, refer to VALVE COVER - RH  in this service information.
