Material Specifications
WARNING: This page is about a different car, the 2011 Ford F550 Super Duty and 2011 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (US); Motorcraft® SAE 5W-20 Super Premium Motor Oil (Canada) XO-5W20-QSP (US); CXO-5W20-LSP12 (Canada) |
WSS-M2C945-A |

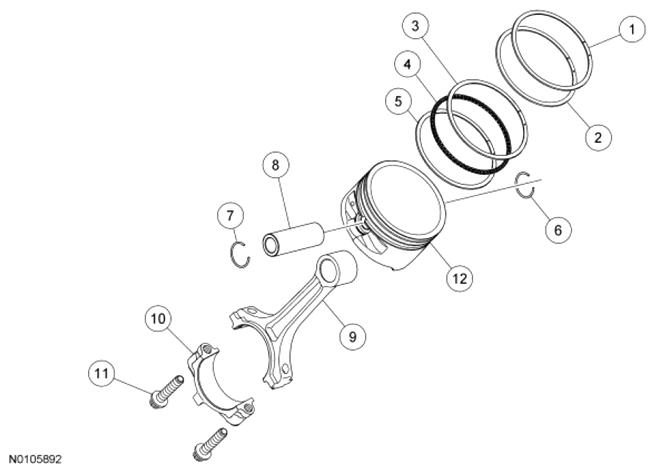

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 6150 | Piston compression upper ring |
| 2 | 6152 | Piston compression lower ring |
| 3 | 6159 | Piston oil control upper segment ring |
| 4 | 6161 | Piston oil control spacer |
| 5 | 6159 | Piston oil control lower segment ring |
| 6 | 6140 | Piston pin retainer |
| 7 | 6140 | Piston pin retainer |
| 8 | 6135 | Piston pin |
| 9 | 6200 | Connecting rod |
| 10 | - | Connecting rod bearing cap (part of 6200) |
| 11 | 6214 | Connecting rod bearing cap bolt (2 required) |
| 12 | 6110 | Piston |
