Throttle Body (TB) and TB Spacer
WARNING: This page is about a different car, the 2011 Ford F550 Super Duty and 2011 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

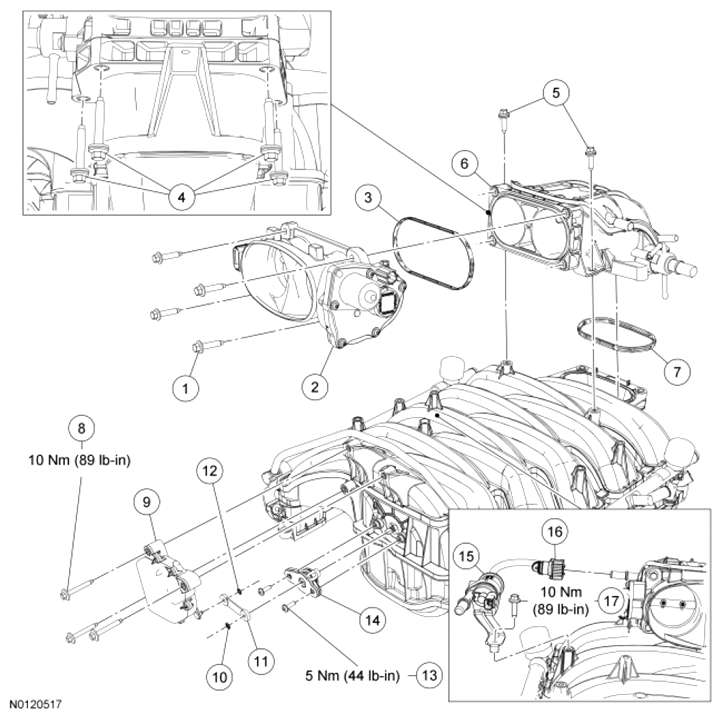

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | W500215 | Throttle Body (TB) bolt (4 required) |
| 2 | 9E926 | TB |
| 3 | 9E936 | TB gasket |
| 4 | W503280 | Lower TB spacer bolts (4 required) |
| 5 | W503275 | Upper TB spacer bolts (2 required) |
| 6 | 9A589 | TB spacer |
| 7 | 9L437 | TB spacer gasket |
| 8 | W503917 | Intake Manifold Runner Control (IMRC) actuator bolt (3 required) |
| 9 | 9J559 | IMRC actuator |
| 10 | - | IMRC actuator control rod clip (part of 9L488) |
| 11 | 9L488 | IMRC actuator control rod |
| 12 | - | IMRC actuator control rod clip (part of 9L488) |
| 13 | W506964 | IMRC intake manifold valve bolt (2 required) |
| 14 | 9L492 | IMRC intake manifold valve |
| 15 | 9C915 | Evaporative Emission (EVAP) canister purge valve |
| 16 | - | EVAP canister purge valve-to-intake manifold quick connect coupling (part of 9C915) |
| 17 | W500214 | EVAP canister purge valve bolt |
