Fuel Rail and Fuel Injector
WARNING: This page is about a different car, the 2011 Ford F550 Super Duty and 2011 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

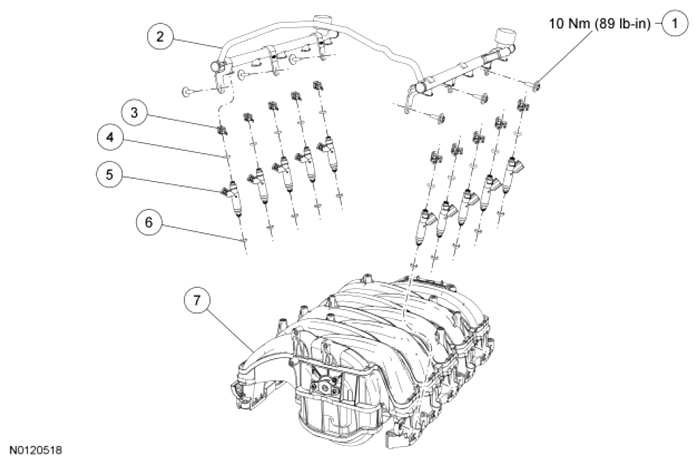

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | W710700 | Fuel rail bolt (6 required) |
| 2 | 9F792 | Fuel rail |
| 3 | 9C995 | Fuel injector-to-fuel rail locking clip (10 required) |
| 4 | - | Fuel injector-to-fuel rail O-ring seal (10 required) (part of 9F593) |
| 5 | 9F593 | Fuel injector (10 required) |
| 6 | - | Fuel injector-to-intake manifold O-ring seal (10 required) (part of 9F593) |
| 7 | 9424 | Intake manifold |
