Material Specifications
WARNING: This page is about a different car, the 2011 Ford F550 Super Duty and 2011 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (US); Motorcraft® SAE 5W-20 Super Premium Motor Oil (Canada) XO-5W20-QSP (US); CXO-5W20-LSP12 (Canada) |
WSS-M2C945-A |

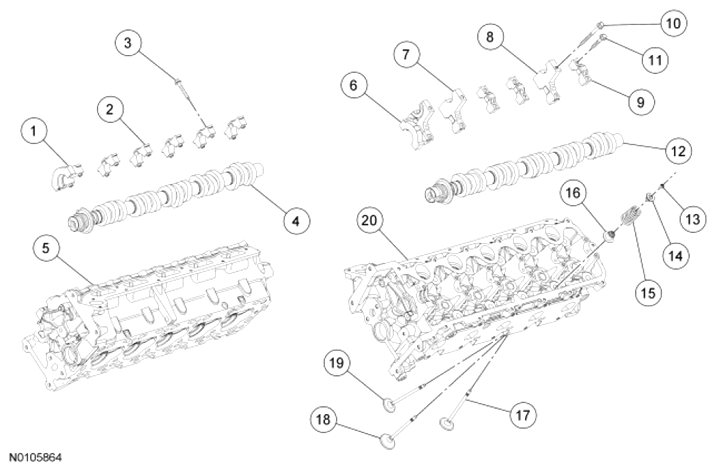

ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | 6B284 | RH front camshaft bearing cap |
| 2 | 6B280 | RH camshaft bearing cap (5 required) |
| 3 | N807352 | RH camshaft bearing cap bolt (12 required) |
| 4 | 6251 | RH camshaft |
| 5 | 6049 | RH cylinder head |
| 6 | 6C272 | LH camshaft front bearing cap |
| 7 | 6C266 | LH camshaft bearing cap |
| 8 | 6C266 | LH camshaft bearing cap |
| 9 | 6B280 | LH camshaft bearing cap (3 required) |
| 10 | N807352 | LH camshaft bearing cap bolt (9 required) |
| 11 | W708028 | LH camshaft balance shaft bearing cab bolt (3 required) |
| 12 | 6C255 | LH camshaft |
| 13 | 6518 | Valve spring retainer key (60 required) |
| 14 | 6514 | Valve spring retainer (30 required) |
| 15 | 6513 | Valve spring (30 required) |
| 16 | 6A517 | Valve seal (30 required) |
| 17 | 6507 | Intake valve (10 required) |
| 18 | 6505 | Exhaust valve (10 required) |
| 19 | 6507 | Intake valve (10 required) |
| 20 | 6050 | LH cylinder head |
