Engine - Upper End

WARNING: This page is about a different car, the 2011 Ford F550 Super Duty and 2011 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

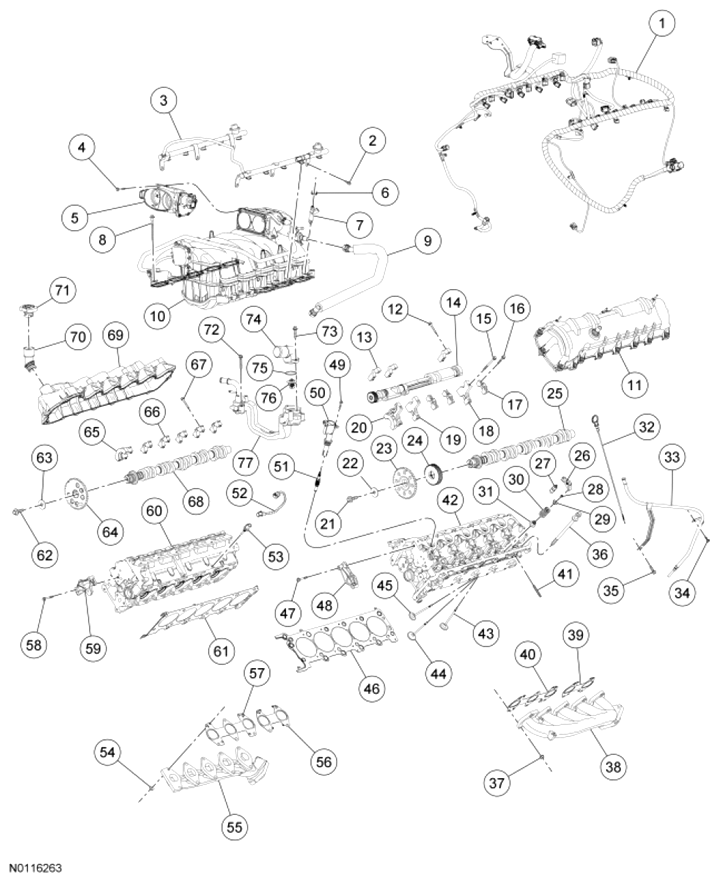

Fig 1: Exploded View Of Engine Components - Upper End

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	12B637	Engine wiring harness
2	W710700	Fuel rail bolt (6 required)
3	9F792	Fuel rail
4	W500215	Throttle Body (TB) bolt (4 required)
5	9E926	TB
6	9C995	Fuel injector-to-fuel rail locking clip (10 required)
7	9F593	Fuel injector (10 required)
8	W710758	Intake manifold bolt (12 required)
9	6A664	PCV tube
10	9424	Intake manifold
11	6582	Valve cover - LH
12	W708027	Balance shaft bearing cap bolt (6 required)
13	6C267	Balance shaft bearing cap (3 required)
14	6A311	Balance shaft
15	W708028	Camshaft balance shaft bearing cap bolt - LH (3 required)
16	N807352	Camshaft bearing cap bolt - LH (9 required)
17	6B280	Camshaft bearing cap - LH (3 required)
18	9C269	Camshaft bearing cap - LH
19	6C266	Camshaft bearing cap - LH
20	6C272	Camshaft front bearing cap - LH
21	W710926	Camshaft sprocket bolt - LH
22	6278	Camshaft sprocket washer - LH
23	6256	Camshaft sprocket - LH
24	6A303	Balance shaft drive gear
25	6250	Camshaft - LH
26	6564	Roller follower (30 required)
27	6500	Hydraulic lash adjuster (30 required)
28	6518	Valve spring retainer key (60 required)
29	6514	Valve spring retainer (30 required)
30	6513	Valve spring (30 required)
31	6571	Valve stem seal (30 required)
32	6750	Oil level indicator
33	6754	Oil level indicator tube
34	N605892	Oil level indicator tube bolt
35	W500224	Oil level indicator tube bolt
36	6065	Cylinder head bolt (24 required)
37	W701706	Exhaust manifold nut (10 required)
38	9430	Exhaust manifold - LH
39	9448	Exhaust manifold gasket - LH
40	9448	Exhaust manifold gasket - LH
41	W703902	Exhaust manifold stud (20 required)
42	6049	Cylinder head - LH
43	6507	Intake valve (10 required)
44	6505	Exhaust valve (10 required)
45	6507	Intake valve (10 required)
46	6051	Cylinder head gasket - LH
47	W503282	Engine oil accessory cover bolts - LH (2 required)
48	6N881	Engine oil accessory cover - LH
49	W711062	Ignition coil bolt (10 required)
50	12029	Ignition coil (10 required)
51	12405	Spark plug (10 required)
52	14A411	Cylinder Head Temperature (CHT) sensor jumper harness
53	6G004	CHT sensor
54	W701706	Exhaust manifold nut (10 required)
55	9430	Exhaust manifold - RH
56	9448	Exhaust manifold gasket - RH
57	9448	Exhaust manifold gasket - RH
58	W503282	Engine oil accessory cover bolt - RH (2 required)
59	6N881	Engine oil accessory cover - RH
60	6049	Cylinder head - RH
61	6051	Cylinder head gasket - RH
62	W710926	Camshaft sprocket bolt - RH
63	6278	Camshaft sprocket washer - RH
64	6256	Camshaft sprocket - RH
65	6254	Camshaft front bearing cap - RH
66	6B280	Camshaft bearing cap - RH (5 required)
67	N807352	Camshaft bearing cap bolt - RH (12 required)
68	6250	Camshaft - RH
69	6582	Valve cover - RH
70	6763	Oil fill adapter
71	6766	Oil fill adapter cap
72	W503282	Coolant crossover manifold assembly bolt (3 required)
73	W503279	Thermostat housing bolt (2 required)
74	8592	Thermostat housing
75	8255	Thermostat O-ring seal
76	8575	Thermostat
77	8C368	Coolant crossover manifold assembly
