Engine - Front End

WARNING: This page is about a different car, the 2011 Ford F550 Super Duty and 2011 Ford F450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

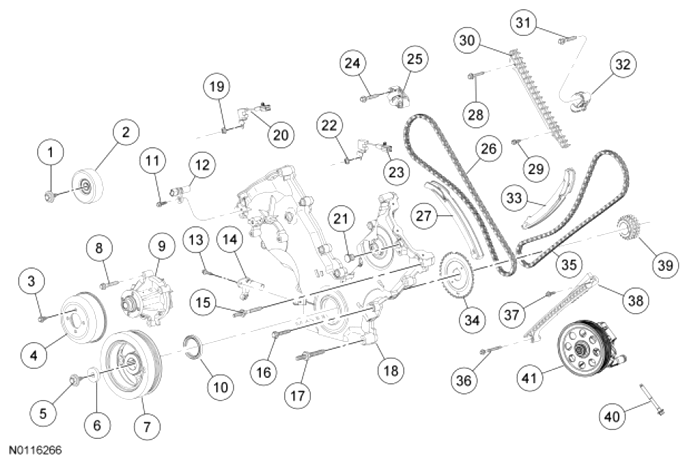

Fig 1: Exploded View Of Engine Components - Front End

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	N808102	Accessory drive belt idler pulley bolt
2	8678	Accessory drive belt idler pulley
3	N806282	Coolant pump pulley bolt (4 required)
4	8509	Coolant pump pulley
5	W701512	Crankshaft pulley bolt
6	6378	Crankshaft pulley washer
7	6312	Crankshaft pulley
8	N808794	Coolant pump bolt (4 required)
9	8501	Coolant pump
10	6700	Crankshaft front seal
11	N806155	Camshaft Position (CMP) sensor bolt
12	6B288	CMP sensor
13	N806155	Crankshaft Position (CKP) sensor bolt
14	6C315	CKP sensor
15	W709573	Engine front cover stud bolt (5 required)
16	N806177	Engine front cover bolt (8 required)
17	N808529	Engine front cover stud bolt (2 required)
18	6019	Engine front cover
19	N804178	Radio ignition interference capacitor nut - RH
20	18801	Radio ignition interference capacitor - RH
21	6026	Engine front cover plug
22	N804178	Radio ignition interference capacitor nut - LH
23	18801	Radio ignition interference capacitor - LH
24	N606543	Timing chain tensioner bolt (2 required) - RH
25	6L266	Timing chain tensioner - RH
26	6268	Timing chain - RH
27	6K255	Tensioner arm - RH
28	W503282	Timing chain guide upper bolt - RH
29	N806040	Timing chain guide lower bolt - RH
30	6M256	Timing chain guide - RH
31	N606543	Timing chain tensioner bolt - LH (2 required)
32	6L266	Timing chain tensioner - LH
33	6M274	Tensioner arm - LH
34	12A227	Ignition pulse wheel
35	6268	Timing chain - LH
36	N606527	Timing chain guide lower bolt - LH
37	N605892	Timing chain guide upper bolt - LH
38	6K297	Timing chain guide - LH
39	6306	Crankshaft sprocket
40	W715068	Power steering pump bolt (3 required)
41	3A696	Power steering pump assembly
