Timing Drive Components: Installation

WARNING: This page is about a different car, the 2011 Ford Pickup and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Timing chain procedures must be followed exactly or damage to valves and pistons will result.
  1. Using a small pick, carefully push the tensioner rack pawl retainer away from the rack pawl and compress the tensioner plunger and rack using a vise.
    Fig 1: Pushing Tensioner Rack Pawl Retainer From Rack Pawl
    G07479493Courtesy of FORD MOTOR CO.
  2. Install a small pick into the tensioner to hold the rack pawl and plunger in the seated position for tensioner installation.
    Fig 2: Holding Rack Pawl And Plunger
    G07479494Courtesy of FORD MOTOR CO.
  3. Remove the tensioner from the vise.
  4. If the blue links are not visible, mark 2 links on each end, and use as timing marks.
    Fig 3: Locating Timing Chain Copper Links
    G07479495Courtesy of FORD MOTOR CO.
    5. NOTE: Make sure the upper half of the timing chain is below the tensioner arm dowel and above the chain guide pin.

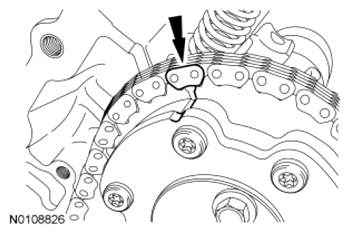

    Fig 4: Locating Upper End Of LH (Inner) Timing Chain
    G07479496Courtesy of FORD MOTOR CO.
  5. Position the upper end of the LH (inner) timing chain on the LH camshaft phaser and sprocket, aligning the timing mark on the outer flange of the camshaft phaser and sprocket with the single blue (marked) link on the chain.
  6. Position the lower end of the LH (inner) timing chain on the crankshaft sprocket, aligning the timing mark on the outer flange of the crankshaft sprocket with the single blue (marked) link on the chain and install the crankshaft sprocket onto the crankshaft and verify the crankshaft keyway is at the 11 o'clock position.

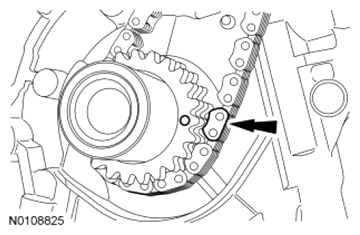

    Fig 5: Locating Lower End Of LH (Inner) Timing Chain
    G07479497Courtesy of FORD MOTOR CO.
  7. Install the LH timing chain tensioner arm.

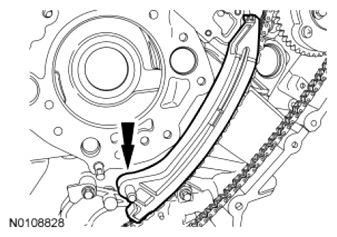

    Fig 6: Locating LH Timing Chain Tensioner Arm
    G07479498Courtesy of FORD MOTOR CO.
  8. Position the LH timing chain tensioner and install the 2 bolts in 2 stages.
    • Stage 1: Tighten to 10 Nm (89 lb-in).
    • Stage 2: Tighten an additional 45 degrees.

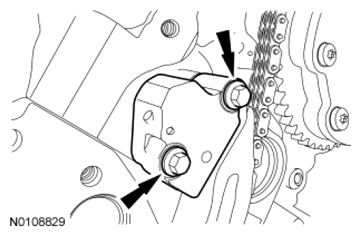

    Fig 7: Locating LH Timing Chain Tensioner Bolts
    G07479499Courtesy of FORD MOTOR CO.
  9. Position the LH timing chain guide and install the bolt in 2 stages.
    • Stage 1: Tighten to 10 Nm (89 lb-in).
    • Stage 2: Tighten an additional 45 degrees.

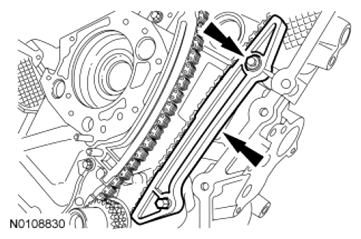

    Fig 8: Locating LH Timing Chain Guide Bolt
    G07479500Courtesy of FORD MOTOR CO.
  10. Remove the retaining clip from the LH timing chain tensioner.
  11. Position the lower end of the RH (outer) timing chain on the crankshaft sprocket, aligning the timing mark on the sprocket with the single blue (marked) chain link.

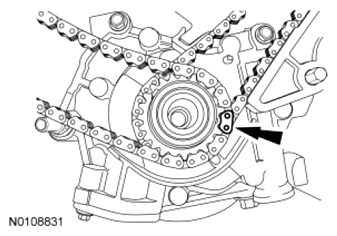

    Fig 9: Locating Lower End Of RH (Outer) Timing Chain
    G07479501Courtesy of FORD MOTOR CO.
  12. Position the upper end of the RH (outer) timing chain on the RH camshaft phaser and sprocket, aligning the timing mark on the outer flange of the camshaft phaser and sprocket with the single blue (marked) link on the chain.

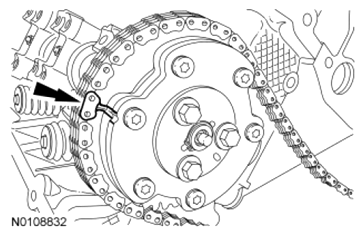

    Fig 10: Locating Upper End Of RH (Outer) Timing Chain
    G07479502Courtesy of FORD MOTOR CO.
  13. Position the RH timing chain tensioner arm on the dowel pin and the RH timing chain tensioner and install the 2 bolts in 2 stages.
    • Stage 1: Tighten to 10 Nm (89 lb-in).
    • Stage 2: Tighten an additional 45 degrees.

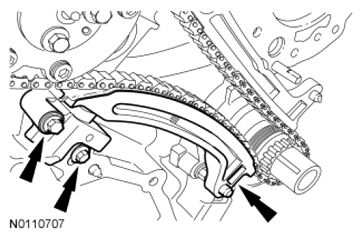

    Fig 11: Locating RH Timing Chain Tensioner Arm And Bolts
    G07479503Courtesy of FORD MOTOR CO.
  14. Position the RH timing chain guide and install the bolt in 2 stages.
    • Stage 1: Tighten to 10 Nm (89 lb-in).
    • Stage 2: Tighten an additional 45 degrees.

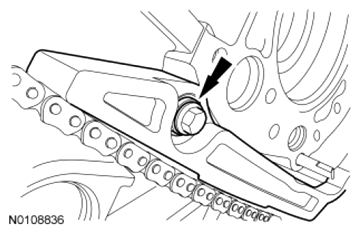

    Fig 12: Removing RH Timing Chain Guide Bolt
    G07479504Courtesy of FORD MOTOR CO.
  15. Remove the retaining clip from the RH timing chain tensioner.
  16. As a post-check, verify correct alignment of all timing marks.
    Fig 13: Locating Timing Marks On Timing Chain
    G07479505Courtesy of FORD MOTOR CO.
  17. Lubricate the rocker arm shaft-to-valve tip and rocker arm-to-camshaft lobe contact area with clean engine oil prior to installation.
  18. Rotate the engine clockwise until the No. 1 cylinder camshaft intake lobe is positioned so that the intake valve would be fully opened.
  19. Position the LH intake rocker arm shaft assembly and install the bolts finger-tight.
  20. Tighten the 10 LH intake rocker arm shaft assembly bolts in the sequence shown in illustration, in 3 stages.
    • Stage 1: Tighten to 10 Nm (89 lb-in).
    • Stage 2: Tighten to 20 Nm (177 lb-in).
    • Stage 3: Tighten an additional 60 degrees.

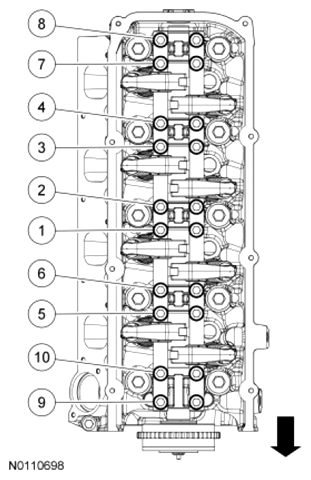

    Fig 14: Intake Rocker Arm Shaft Assembly Bolts Tightening Sequence (LH)
    G07479506Courtesy of FORD MOTOR CO.
  21. Rotate the engine clockwise until the No. 1 cylinder camshaft exhaust lobe is positioned so that the exhaust valve would be fully opened.
  22. Position the LH exhaust rocker arm shaft assembly and install the bolts finger-tight.
  23. Tighten the 10 LH exhaust rocker arm shaft assembly bolts in the sequence shown in illustration, in 3 stages.
    • Stage 1: Tighten to 10 Nm (89 lb-in).
    • Stage 2: Tighten to 20 Nm (177 lb-in).
    • Stage 3: Tighten an additional 60 degrees.

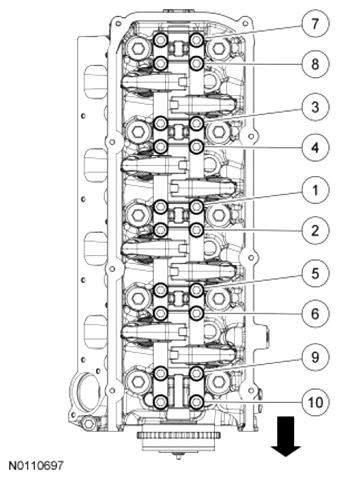

    Fig 15: Identifying Exhaust Rocker Arm Shaft Assembly Bolts Tightening Sequence (LH)
    G07479507Courtesy of FORD MOTOR CO.
  24. Rotate the engine clockwise until the No. 1 cylinder camshaft intake lobe is positioned so that the intake valve would be fully closed.
  25. Position the RH intake rocker arm shaft assembly and install the bolts finger-tight.
  26. Tighten the 10 RH intake rocker arm shaft assembly bolts in the sequence shown in illustration, in 3 stages.
    • Stage 1: Tighten to 10 Nm (89 lb-in).
    • Stage 2: Tighten to 20 Nm (177 lb-in).
    • Stage 3: Tighten an additional 60 degrees.

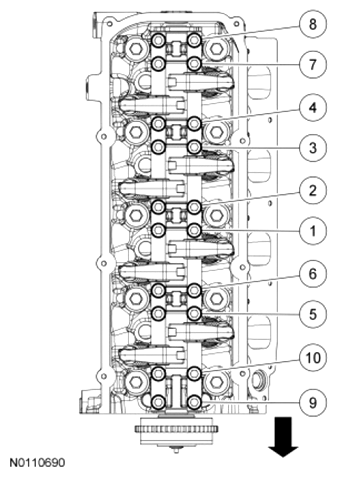

    Fig 16: Identifying Intake Rocker Arm Shaft Assembly Bolts Tightening Sequence (RH)
    G07479508Courtesy of FORD MOTOR CO.
  27. Rotate the engine clockwise until the No. 1 cylinder camshaft exhaust lobe is positioned so that the exhaust valve would be fully closed.
  28. Position the RH exhaust rocker arm shaft assembly and install the bolts finger-tight.
  29. Tighten the 10 RH exhaust rocker arm shaft assembly bolts in the sequence shown in illustration, in 3 stages.
    • Stage 1: Tighten to 10 Nm (89 lb-in).
    • Stage 2: Tighten to 20 Nm (177 lb-in).
    • Stage 3: Tighten an additional 60 degrees.

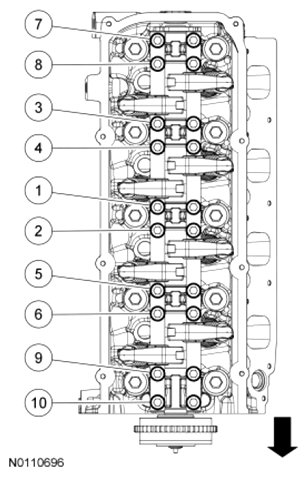

    Fig 17: Identifying Exhaust Rocker Arm Shaft Assembly Bolts Tightening Sequence (RH)
    G07479509Courtesy of FORD MOTOR CO.
    30. NOTE: Only use hand tools when removing or installing the spark plugs or damage can occur to the cylinder head or spark plug.
  30. Install the lower 8 spark plugs.
    • Tighten to 18 Nm (159 lb-in).
  31. Connect the 8 ignition wires to the lower 8 spark plugs.
    • Apply a light coat of dielectric compound to the inside of the ignition wire boots prior to installation.
  32. Install the engine front cover. For additional information, refer to ENGINE FRONT COVER  in this service information.
