Oil Pump: Removal

WARNING: This page is about a different car, the 2011 Ford Pickup and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release the fuel pressure. For additional information, refer to FUEL SYSTEM - GENERAL INFORMATION - GASOLINE AND DIESEL article.
  2. Remove the timing drive components. For additional information, refer to TIMING DRIVE COMPONENTS  in this service information.
  3. Remove the oil pump screen and pickup tube. For additional information, refer to OIL PUMP SCREEN AND PICKUP TUBE  in this service information.
  4. Remove the 2 upper bolts, the 2 lower stud bolts and the oil pump.

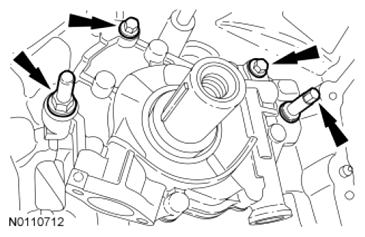

    Fig 1: Locating Oil Pump Upper Bolts And Lower Stud Bolts
    G07479576Courtesy of FORD MOTOR CO.
