Oil Pump Screen and Pickup Tube: Installation

WARNING: This page is about a different car, the 2011 Ford Pickup and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Make sure the O-ring is in place and not damaged. A missing or damaged O-ring can cause foam in the lubrication system, low oil pressure and severe engine damage.
    NOTE: Clean and inspect the mating surfaces and install a new O-ring. Lubricate the O-ring with clean engine oil prior to installation.

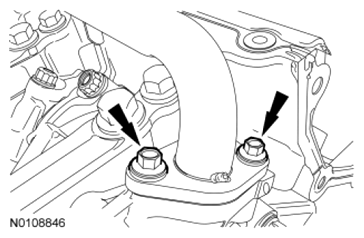

    Fig 1: View Of Oil Pump Screen And Pickup Tube Bolts
    G07479580Courtesy of FORD MOTOR CO.
  1. Position the oil pump screen and pickup tube and install the 2 front bolts.
    • Tighten to 10 Nm (89 lb-in).
  2. Install the oil pump screen and pickup tube support bracket nut.
    • Tighten to 24 Nm (18 lb-ft).

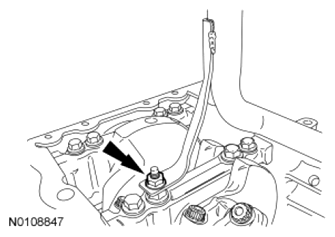

    Fig 2: Locating Oil Pump Screen And Pickup Tube Support Bracket Nut
    G07479581Courtesy of FORD MOTOR CO.
  3. Install the oil pan. For additional information, refer to OIL PAN  in this service information.
