In-Vehicle Repair: Flywheel: Installation
WARNING: This page is about a different car, the 2011 Ford Pickup and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

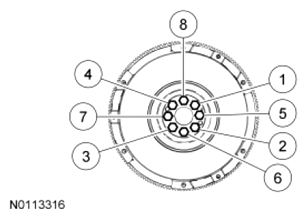

- Tighten the 8 new bolts in 6 stages.
- Stage 1: Tighten fasteners 1 through 4 in sequence to 20 Nm (177 lb-in).
- Stage 2: Tighten fasteners 1 through 4 in sequence to 35 Nm (26 lb-ft).
- Stage 3: Tighten fasteners 1 through 4 in sequence an additional 60 degrees.
- Stage 4: Tighten fasteners 5 through 8 in sequence to 20 Nm (177 lb-in).
- Stage 5: Tighten fasteners 5 through 8 in sequence to 35 Nm (26 lb-ft).
- Stage 6: Tighten fasteners 5 through 8 in sequence an additional 60 degrees.
- Install the clutch disc and pressure plate.
- Using the scan tool, perform the Misfire Monitor Neutral Profile Correction procedure following the on-screen instructions.
