Exhaust Manifold - RH: Material
WARNING: This page is about a different car, the 2011 Ford Pickup and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® Metal Surface Prep ZC-31-A |
- |
| Threadlock 262 TA-26 |
WSK-M2G351-A6 |

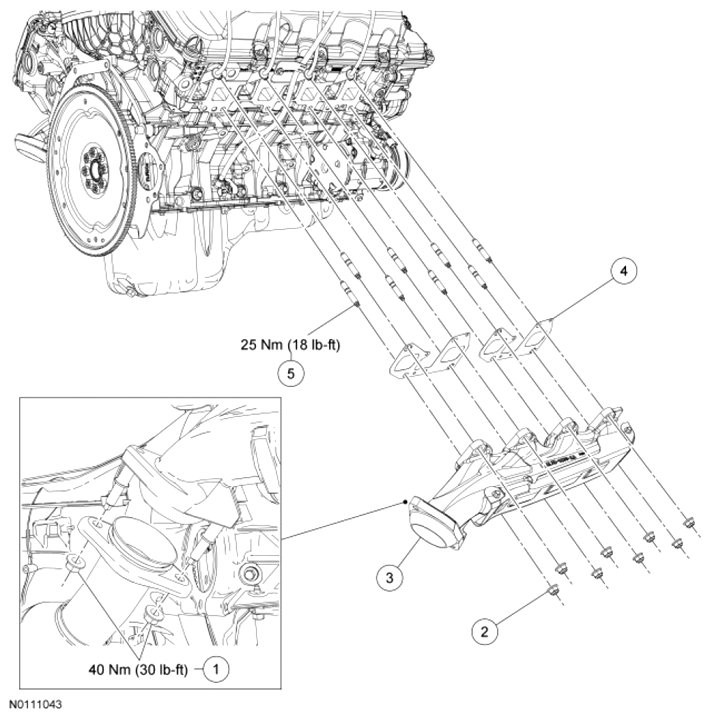

EXHAUST MANIFOLD PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W705443 | RH exhaust Y-pipe flange nuts (2 required) |
| 2 | W701706 | RH exhaust manifold nut (8 required) |
| 3 | 9430 | RH exhaust manifold |
| 4 | 9Y431 | RH exhaust manifold gasket (2 required) |
| 5 | W707747 | RH exhaust manifold stud (8 required) |
