Crankshaft Rear Seal: Installation

WARNING: This page is about a different car, the 2011 Ford Pickup and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Lubricate the crankshaft rear seal with clean engine oil prior to installation.

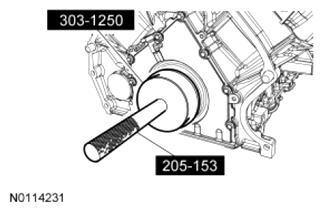

    Fig 1: Installing Crankshaft Rear Seal Using Special Tools
    G07479599Courtesy of FORD MOTOR CO.
  1. Using the Rear Main Seal Installer and Handle, install a new crankshaft rear seal.
    2. NOTE: Inspect the ignition pulse ring for damage. If the ignition pulse ring has been dropped or has any visual damage, it must be discarded.

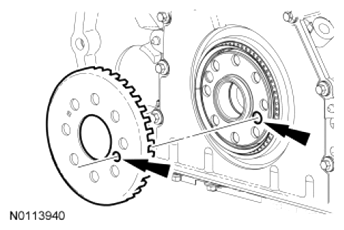

    Fig 2: Locating Holes On Crankshaft Ignition Pulse Ring And Crankshaft Flange
    G07479600Courtesy of FORD MOTOR CO.
  2. With the inset hole on the crankshaft ignition pulse ring aligned with the inset hole on the crankshaft flange, install the crankshaft ignition pulse ring.
  3. Install the engine rear cover plate.
  4. Install the flexplate or flywheel. For additional information, refer to FLEXPLATE  if equipped with an automatic transmission, or Flywheel if equipped with a manual transmission in this service information.
