Crankshaft Pulley: Removal

WARNING: This page is about a different car, the 2011 Ford Pickup and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING article.
  2. Remove the cooling fan shroud. For additional information, refer to ENGINE COOLING - GASOLINE ENGINES article.
  3. Rotate the tensioner clockwise and remove the accessory drive belt from the crankshaft pulley.

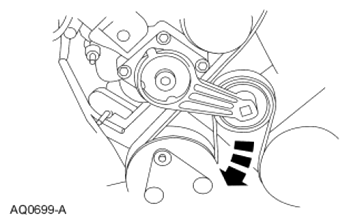

    Fig 1: Rotating Tensioner Clockwise
    G07479428Courtesy of FORD MOTOR CO.
  4. Remove the crankshaft pulley bolt.
    • Discard the crankshaft pulley bolt.
  5. Using the 3 Jaw Puller and Step Plate, remove the crankshaft pulley.

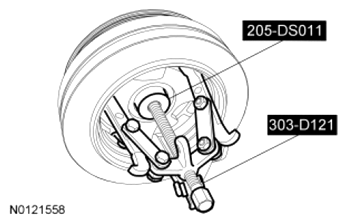

    Fig 2: Removing Crankshaft Pulley Using Jaw Puller And Step Plate
    G07479429Courtesy of FORD MOTOR CO.
