Crankshaft Front Seal: Removal

WARNING: This page is about a different car, the 2011 Ford Pickup and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING article.
Remove the cooling fan shroud. For additional information, refer to ENGINE COOLING - GASOLINE ENGINES article.
Rotate the tensioner clockwise and remove the accessory drive belt from the crankshaft pulley.

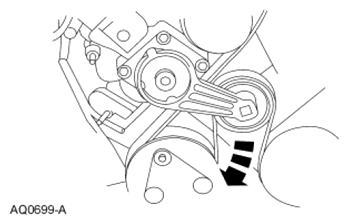

Fig 1: Rotating Tensioner Clockwise
Courtesy of FORD MOTOR CO.
Remove and discard the crankshaft pulley bolt.
Using the 3 Jaw Puller and Step Plate, remove the crankshaft pulley.

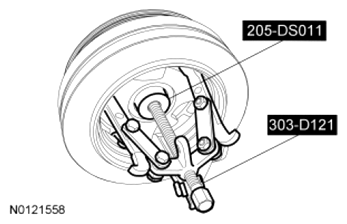

Fig 2: Removing Crankshaft Pulley Using Jaw Puller And Step Plate
Courtesy of FORD MOTOR CO.

NOTE: Use care not to damage the engine front cover or the crankshaft when removing the seal.

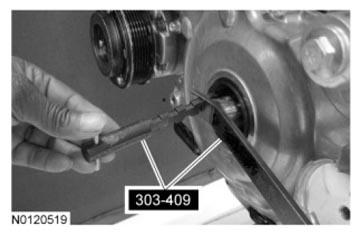

Fig 3: Removing Crankshaft Front Oil Seal

Courtesy of FORD MOTOR CO.

Using the Oil Seal Remover, remove the crankshaft front oil seal.
