Engine - Front End

WARNING: This page is about a different car, the 2011 Ford Pickup and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

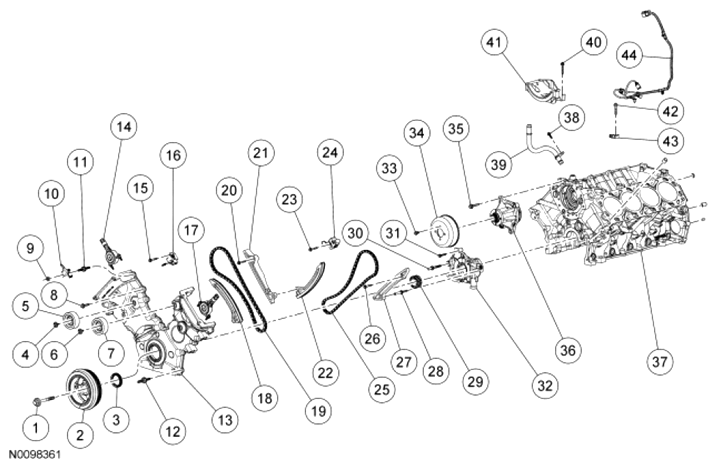

Fig 1: Exploded View Of Engine Components - Front End

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	6A340	Crankshaft pulley bolt and washer
2	6316	Crankshaft pulley
3	6700	Crankshaft front seal
4	N808102	Accessory drive belt idler pulley bolt
5	19A216	Accessory drive belt idler pulley
6	N808102	Accessory drive belt idler pulley bolt
7	19A216	Accessory drive belt idler pulley
8	N806177	Engine front cover bolt (17 required)
9	N804758	Radio ignition interference capacitor nut
10	18801	Radio ignition interference capacitor
11	W713461	Engine front cover stud bolt
12	W713462	Engine front cover stud bolt (2 required)
13	6C086	Engine front cover
14	6B297	VCT system oil control solenoid - RH
15	W503281	Timing chain tensioner bolt - RH (2 required)
16	6L266	Timing chain tensioner - RH
17	6B297	VCT system oil control solenoid - LH
18	6K255	Timing chain tensioner arm - RH
19	6268	Timing chain - RH
20	W503281	Timing chain guide bolt - RH
21	6M256	Timing chain guide - RH
22	6K255	Tensioner arm - LH
23	W503281	Timing chain tensioner bolt - LH (2 required)
24	6L266	Timing chain tensioner - LH
25	6268	Timing chain - LH
26	N606527	Timing chain guide bolt - LH
27	6B274	Timing chain guide - LH
28	W713655	Oil pump stud bolt
29	6306	Crankshaft sprocket
30	W713654	Oil pump stud bolt
31	N806183	Oil pump bolt (2 required)
32	6600	Oil pump
33	N806282	Coolant pump pulley bolt (4 required)
34	6A528	Coolant pump pulley
35	W503298	Coolant pump bolt (4 required)
36	8501	Coolant pump
37	6010	Cylinder block
38	W503276	Heater coolant return fitting bolt
39	18663	Heater coolant return fitting
40	W503300	Generator support bracket bolt (4 required)
41	10239	Generator support bracket
42	W500110	Knock Sensor (KS) bolt (2 required)
43	12A699	KS (2 required)
44	14B485	KS wring harness
