Auxiliary Fuel Tank - 72L (19 Gal)
WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

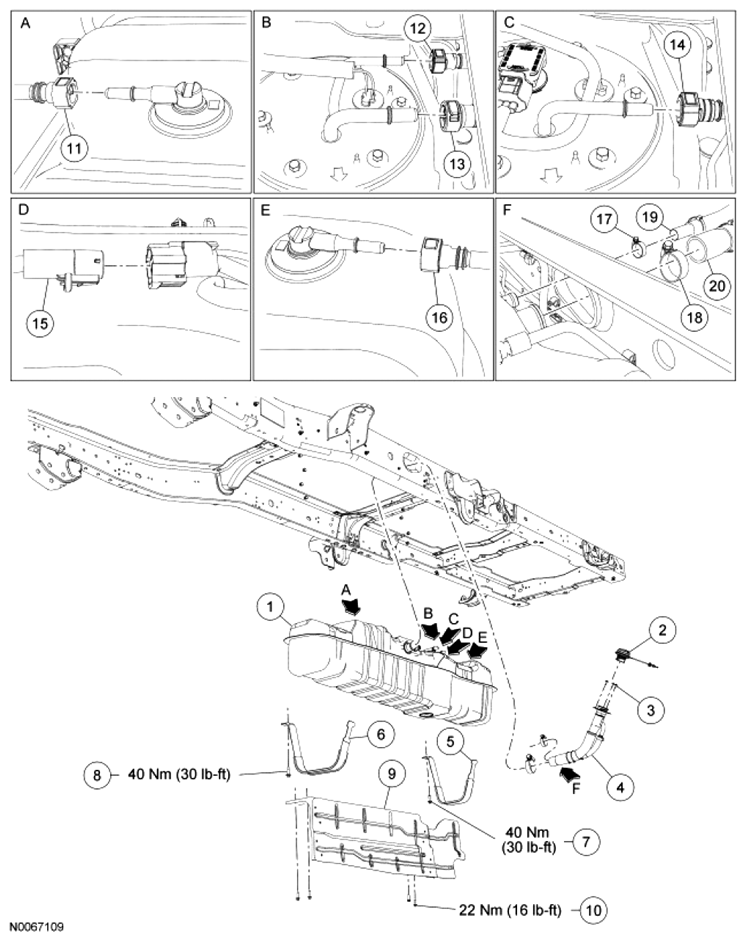

PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 9002 | Auxiliary fuel tank |
| 2 | 9030 | Fuel tank filler cap |
| 3 | W711103 | Fuel tank filler pipe retaining screw (with plastic inserts, early build) (3 required) |
| 3 | N800481 | Fuel tank piller pipe retaining screw (without plastic inserts, late build) (3 required) |
| 4 | 9034 | Fuel tank filler pipe assembly |
| 5 | 9054 | Rear fuel tank strap |
| 6 | 9057 | Front fuel tank strap |
| 7 | W506435 | Rear fuel tank strap bolt |
| 8 | W506435 | Front fuel tank strap bolt |
| 9 | 9K014 | Fuel tank shield |
| 10 | W506424 | Fuel tank shield bolt (4 required) |
| 11 | - | Fuel vapor tube-to-fuel tank grade vent valve quick connect coupling (gasoline engine) (part of 9S278) |
| 12 | - | Fuel return tube-to-fuel level sensor quick connect coupling (diesel engine) (part of 9S278) |
| 13 | - | Fuel supply tube-to-fuel level sensor quick connect coupling (diesel engine) (part of 9S278) |
| 14 | - | Fuel supply tube-to-Fuel Pump (FP) module quick connect coupling (gasoline engines) (part of 9S278) |
| 15 | - | FP module (gasoline engine)/fuel level sensor (diesel engine) electrical connector (part of 9B785 gasoline engine/9275 diesel engine) |
| 16 | - | Fuel vapor tube-to-fuel tank grade vent valve quick connect coupling (gasoline engines) (part of 9S278) |
| 17 | W711089 | Fuel tank filler pipe vent hose clamp |
| 18 | W711088 | Fuel tank filler pipe hose clamp |
| 19 | - | Fuel tank filler pipe vent hose (part of 9034) |
| 20 | - | Fuel tank filler pipe (part of 9034) |
- For additional information, refer to the appropriate procedure(s).
