Fuel Pump Module - Steel Fuel Tank (Gasoline): Notes

WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Aft-of-axle fuel tank shown in illustration, auxiliary fuel tank similar.

NOTE: This procedure is for gasoline applications only.

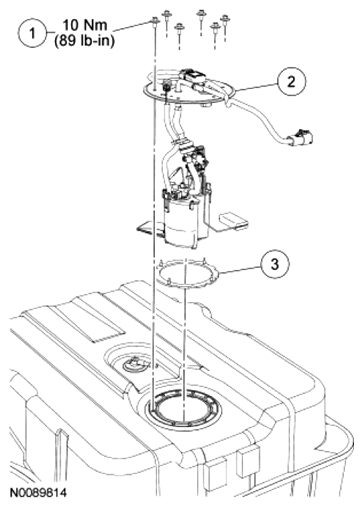

Fig 1: Fuel Pump Module Replacement Components With Torque Specifications - Steel Fuel Tank

Courtesy of FORD MOTOR CO.

PART DESCRIPTION CHART

Item	Part Number	Description
1	N602725	Fuel Pump (FP) module bolt (6 required)
2	9H307	FP module
3	-	FP module gasket
