Fuel Pump Module - Plastic Fuel Tank (Gasoline): Material

WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

MATERIAL SPECIFICATION

Item	Specification
Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft® SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent	WSS-M2C930-A

NOTE: This procedure is for gasoline applications only.

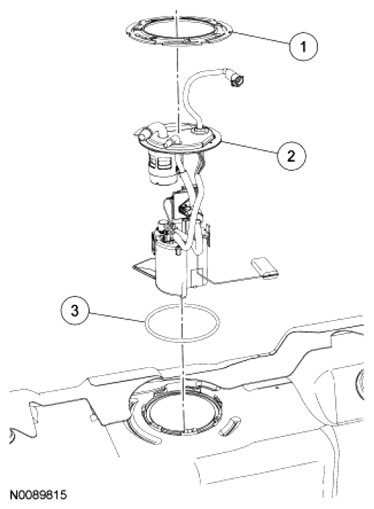

Fig 1: Identifying Fuel Pump Module Components - Plastic Fuel Tank

Courtesy of FORD MOTOR CO.

PART DESCRIPTION CHART

Item	Part Number	Description
1	9C385	Fuel Pump (FP) module lock ring
2	9H307	FP module
3	9276	FP module O-ring seal
