Special Tool(s)
WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S) SPECIFICATION
| Fuel Tank Sender Unit Socket 310-059 (T97T-9275-A) |
NOTE:
This procedure is for diesel applications only.

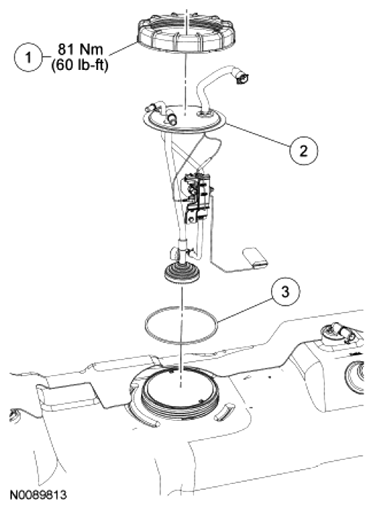

PART DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 9A307 | Fuel level sensor lock ring |
| 2 | 9275 | Fuel level sensor |
| 3 | 9417 | Fuel level sensor gasket |
