Turbocharger Actuator Cooler: Notes
WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

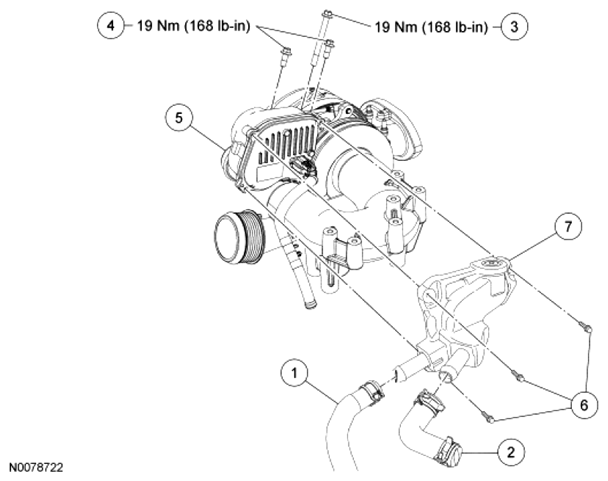

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 8D011 | Turbocharger actuator cooler-to-radiator hose |
| 2 | - | Coolant expansion tank-to-turbocharger actuator cooler hose |
| 3 | W302504 | Turbocharger actuator long bolt |
| 4 | W302503 | Turbocharger actuator short bolts (2 required) |
| 5 | 9F089 | Turbocharger actuator |
| 6 | - | Turbocharger actuator cooler bolts (3 required) |
| 7 | - | Turbocharger actuator cooler |
