Coolant Hose: Notes
WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

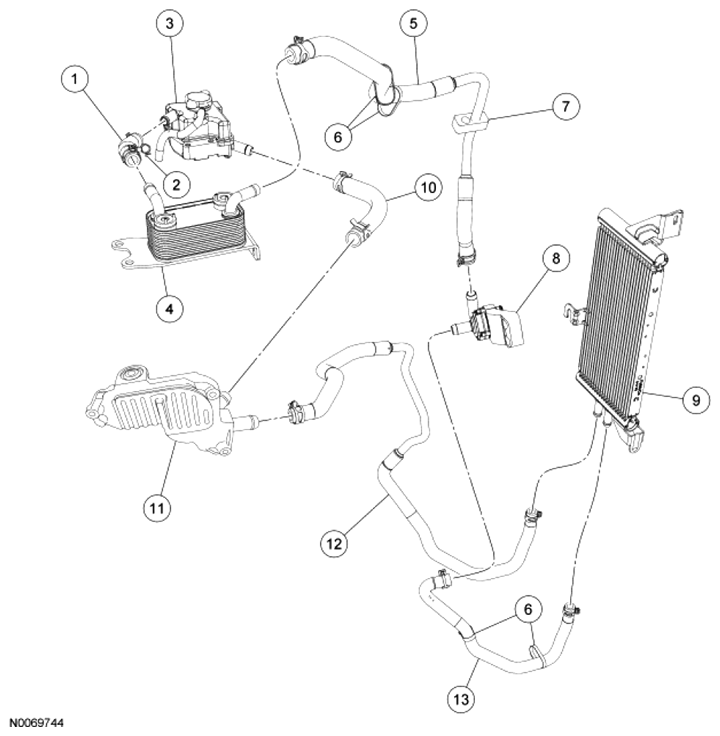

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | R836 | Fuel cooler-to-coolant expansion tank hose |
| 2 | 8D081 | Coolant hose clip |
| 3 | 9C248 | Coolant expansion tank |
| 4 | 9N103 | Fuel cooler |
| 5 | 8D011 | Coolant pump-to-fuel cooler hose |
| 6 | 18C553 | Tie straps (4 required) |
| 7 | 8D012 | Coolant hose clip |
| 8 | 8B552 | Coolant pump |
| 9 | 8D010 | Fuel cooling system radiator |
| 10 | 8D011 | Coolant expansion tank-to-turbocharger actuator cooler hose |
| 11 | - | Turbocharger actuator cooler |
| 12 | 8D011 | Turbocharger actuator cooler-to-radiator hose |
| 13 | 8D011 | Radiator-to-coolant pump hose |
