Coolant Expansion Tank: Notes
WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

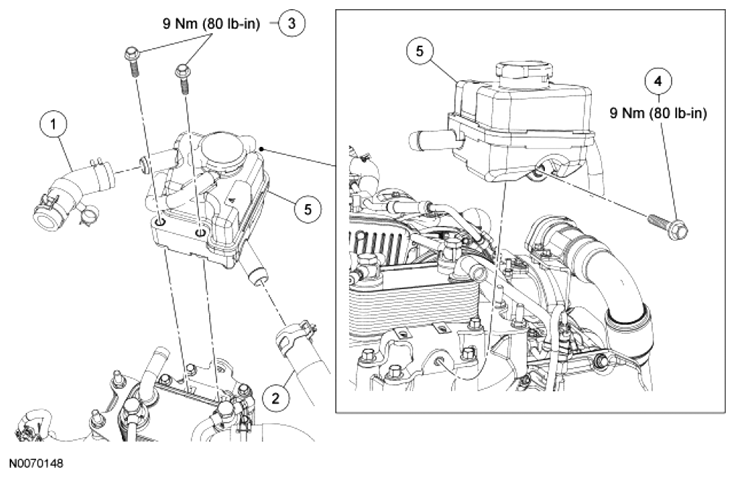

ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | R836 | Fuel cooler-to-coolant expansion tank hose |
| 2 | 8D011 | Coolant expansion tank-to-turbocharger actuator cooler hose |
| 3 | W302517 | Coolant expansion tank bolts (2 required) |
| 4 | W302516 | Coolant expansion tank bolt |
| 5 | 9C248 | Coolant expansion tank |
