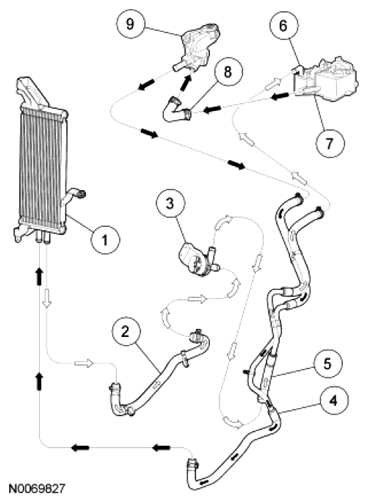

Coolant Flow Diagram
WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Black arrows indicate hot, white arrows indicate cold.
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 8D010 | Fuel cooling system radiator |
| 2 | 8D011 | Fuel cooling system radiator-to-coolant pump coolant hose |
| 3 | 8B552 | Coolant pump |
| 4 | 8D011 | Coolant expansion tank-to-fuel cooling system radiator coolant hose |
| 5 | 8D011 | Coolant pump-to-fuel cooler hose |
| 6 | - | Fuel cooler |
| 7 | 9C248 | Coolant expansion tank |
| 8 | - | Turbocharger actuator cooler hose |
| 9 | - | Turbocharger actuator cooler |
