Turbocharger Pedestal: Notes

WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

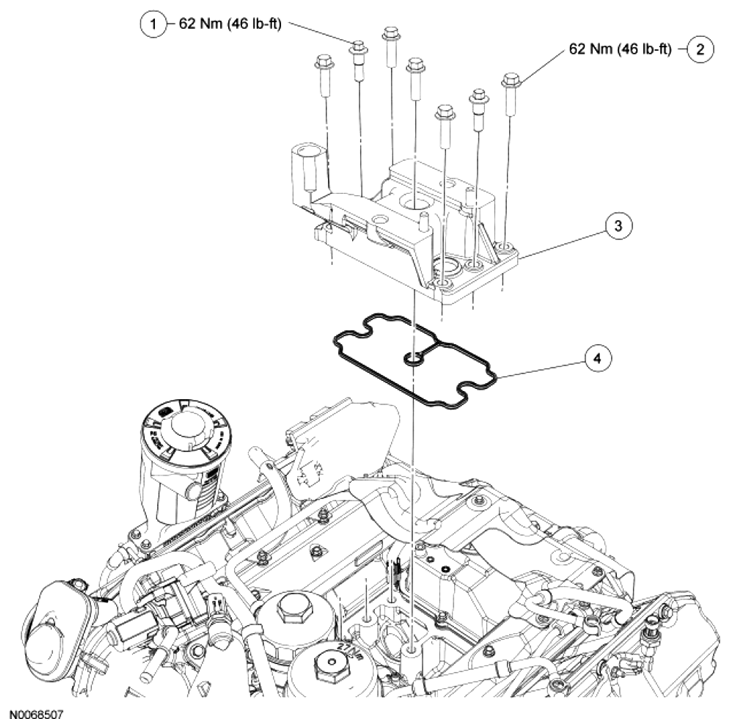

Fig 1: Turbocharger Pedestal Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	W302514	Turbocharger pedestal bolt (2 required)
2	W302214	Bolt (5 required)
3	9P462	Turbocharger pedestal
4	W302508	Turbocharger pedestal gasket
