Turbocharger Oil, Air and Electrical Connections
WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

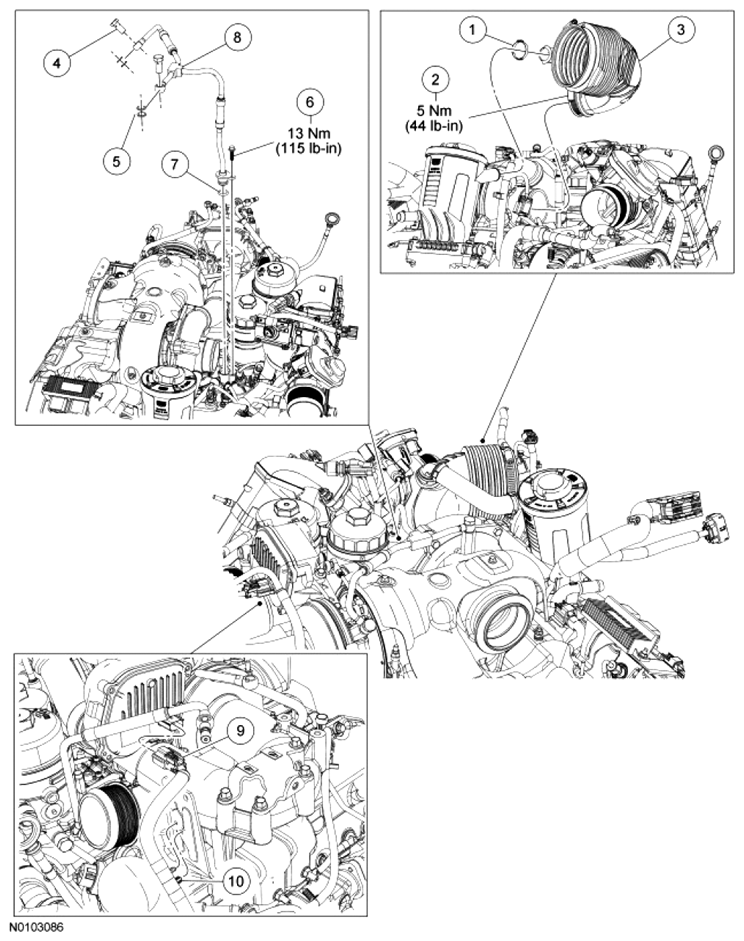

Fig 1: Turbocharger Oil, Air And Electrical Connections Replacement Components With Torque Specifications
ITEM DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 6K786 | Air Cleaner (ACL) outlet tube-to-crankcase vent oil separator hose clamp |
| 2 | 6K789 | ACL outlet tube clamp |
| 3 | 6C646 | ACL outlet tube |
| 4 | W302472 | Turbocharger oil supply tube banjo bolt (2 required) |
| 5 | W302774 | Sealing washer (4 required) |
| 6 | W300005 | Turbocharger oil supply tube bolt |
| 7 | W302203 | O-ring seal |
| 8 | 9T516 | Turbocharger oil supply tube |
| 9 | - | Turbocharger actuator electrical connector (part of 12B637) |
| 10 | - | Pin-type retainer (part of 12B637) |
