Check Axial End Play - Off Vehicle

WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

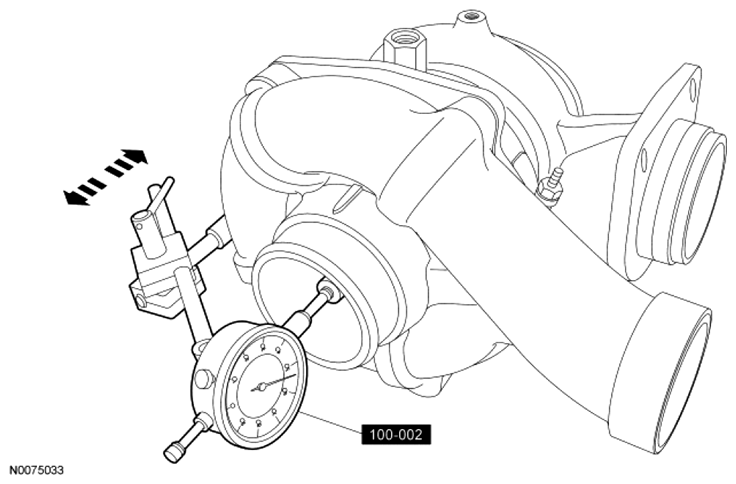

Fig 1: Checking Axial End Play - Off Vehicle

Courtesy of FORD MOTOR CO.

NOTE: Use a turbocharger bolt to mount the Dial Indicator Gauge with Holding Fixture. Position the tip of the Dial Indicator arm into the depression in the end of the turbocharger shaft.

NOTE: The axial end play check is done by pushing on the end of the turbocharger shaft. Zero the Dial Indicator, then push from the other end or pull the shaft.

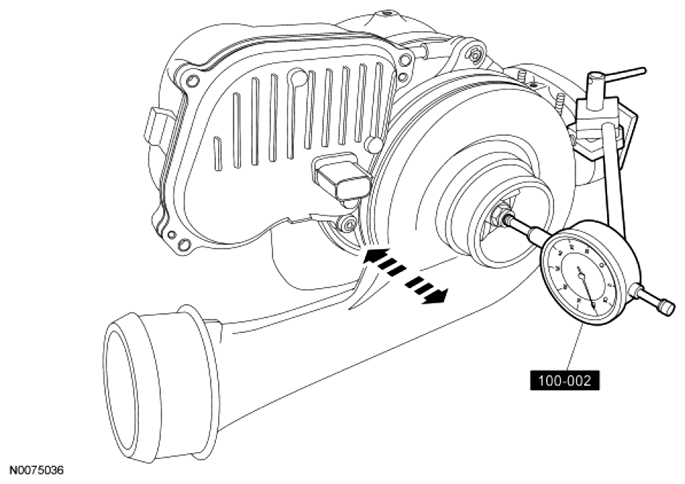

Fig 2: Checking High-Pressure Turbocharger Axial End Play Using Dial Indicator Gauge With Holding Fixture

Courtesy of FORD MOTOR CO.

Using the Dial Indicator Gauge with Holding Fixture, check the high-pressure turbocharger axial end play. Compare the reading with the axial end play specification.

NOTE: Use a turbocharger bolt to mount the Dial Indicator Gauge with Holding Fixture. Position the tip of the Dial Indicator arm into the depression in the end of the turbocharger shaft.

NOTE: The axial end play check is done by pushing on the end of the turbocharger shaft. Zero the Dial Indicator, then push from the other end or pull the shaft.

Using the Dial Indicator Gauge with Holding Fixture, check the low-pressure turbocharger axial end play. Compare the reading with the axial end play specification.
