Removal and Installation

WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the door opening scuff plate trim panel.

Fig 1: Removing Door Opening Scuff Plate Trim Panel
Courtesy of FORD MOTOR CO.
Position the front seat(s) to the full forward position.
Position aside the door opening weatherstrip.

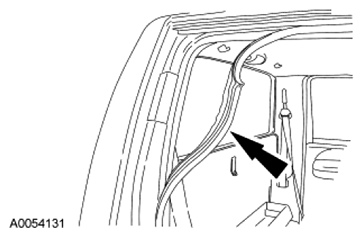

Fig 2: Locating Door Opening Weatherstrip
Courtesy of FORD MOTOR CO.

NOTE: Inspect the shoulder safety belt guide and cover for damage. If the shoulder safety belt guide or cover is damaged or the cover does not remain closed, install a new shoulder safety belt guide.

Remove the shoulder safety belt guide.
1. Position the shoulder safety belt guide cover upward.
2. Remove the shoulder safety belt guide bolt.
  - To install, tighten to 40 Nm (30 lb-ft).
3. Remove the shoulder safety belt guide.

  Fig 3: Identifying Shoulder Safety Belt Guide Cover, Shoulder Safety Belt Guide With Bolt
  Courtesy of FORD MOTOR CO.
Remove the safety belt anchor bolt.
- To install, tighten to 40 Nm (30 lb-ft).

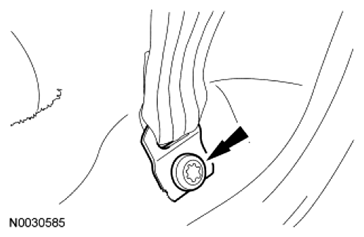

  Fig 4: Locating Safety Belt Anchor Bolt
  Courtesy of FORD MOTOR CO.
Remove the B-pillar trim panel.
- Route the front safety belt and the shoulder belt guide through the B-pillar trim panel.

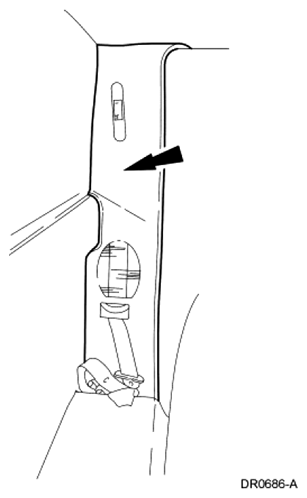

  Fig 5: Locating B-Pillar Trim Panel
  Courtesy of FORD MOTOR CO.

NOTE: To avoid damage to the B-pillar trim panel, remove any retaining clips from the body and attach them to the B-pillar trim panel before installing.

To install, reverse the removal procedure.
