Wheel Bearings, Wheel Hub Seal and Wheel Bearing Cups: Material
WARNING: This page is about a different car, the 2010 Ford Pickup and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Premium Long-Life Grease XG-1-C or XG-1-K (US); CXG-1-C (Canada) |
ESA-M1C75-B |
NOTE:

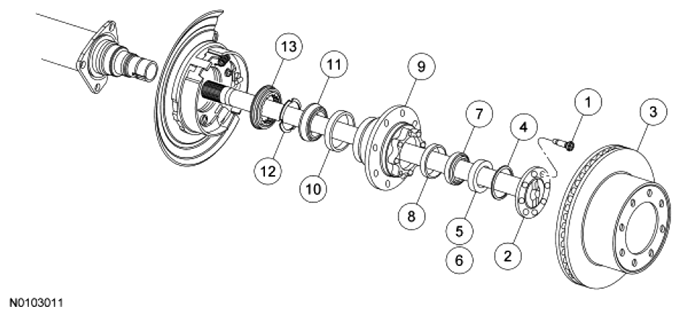

Single Rear Wheel (SRW) shown in illustration, Dual Rear Wheels (DRW) similar.
PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W714981 | Axle shaft bolt (8 required) |
| 2 | 4234 | Axle shaft |
| 3 | 2C026 | Brake disc rotor (Single Rear Wheel (SRW)) |
| 3 | 2C026 | Wheel hub and brake disc (Dual Rear Wheels (DRW)) |
| 4 | 390258 | O-ring |
| 5 | 1A124 | Wheel hub nut (RH) |
| 6 | 1A125 | Wheel hub nut (LH) |
| 7 | 1240 | Outer bearing cone and roller |
| 8 | 1239 | Outer bearing cup |
| 9 | 1A034 | Rear wheel hub |
| 10 | 1243 | Inner bearing cup |
| 11 | 1244 | Inner bearing cone and roller |
| 12 | 4670 | Slinger |
| 13 | 1177 | Wheel hub seal |
