Removal and Installation

WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the Pulse Vacuum Hublock (PVH) solenoid electrical connector.
  2. Disconnect the vacuum hoses.
  3. Remove the 2 PVH  solenoid bolts.
    • To install, tighten to 15 Nm (133 lb-in).

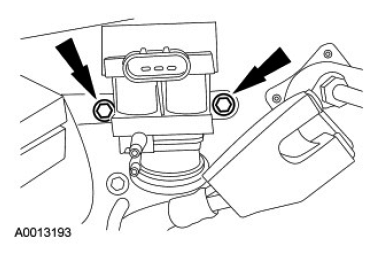

    Fig 1: Locating PVH Solenoid Bolts
    G06763056Courtesy of FORD MOTOR CO.
  4. Remove the PVH  solenoid.
  5. To install, reverse the removal procedure.
