Pulse Vacuum Hublock (PVH) Solenoid: Notes

WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

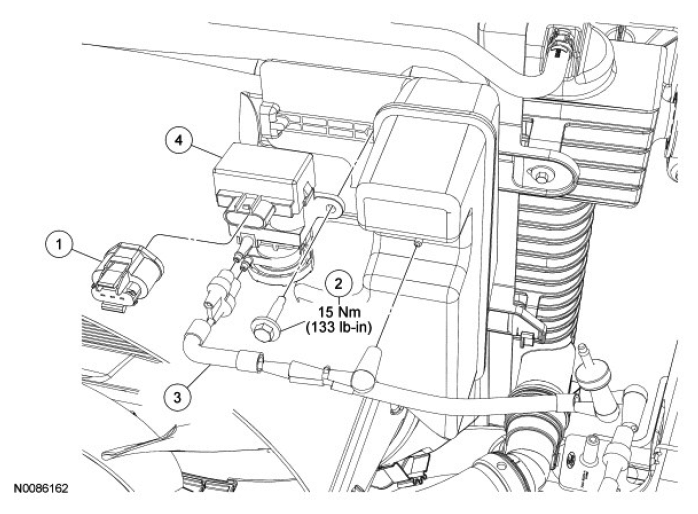

Fig 1: Pulse Vacuum Hublock (PVH) Solenoid Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	-	Electrical connector
2	W505425-S	Pulse Vacuum Hublock (PVH) solenoid bolt
3	-	Vacuum tube
4	9H465	PVH solenoid
