Removal and Installation

WARNING: This page is about a different car, the 2010 Ford Pickup, 2010 Ford F550 Super Duty, 2010 Ford F450 Super Duty, and 2010 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the Mode Select Switch (MSS) knob.
  2. Remove the bezel from the Instrument Cluster (IC) finish panel.

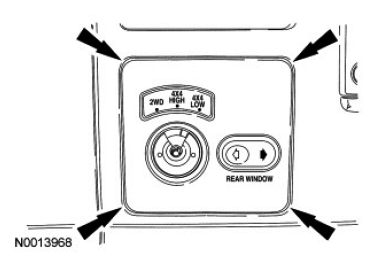

    Fig 1: Locating Instrument Cluster Finish Panel Bezel
    G06763043Courtesy of FORD MOTOR CO.
  3. Disconnect the wiring harness connector.

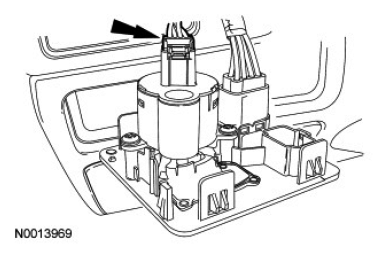

    Fig 2: Locating Wiring Harness Connector
    G06763044Courtesy of FORD MOTOR CO.
  4. Remove the 2 screws and the MSS  .

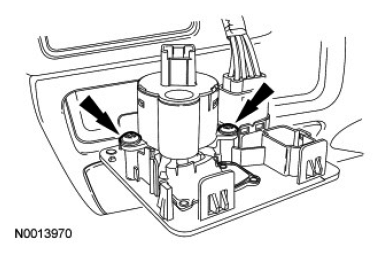

    Fig 3: Locating MSS Screws
    G06763045Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
